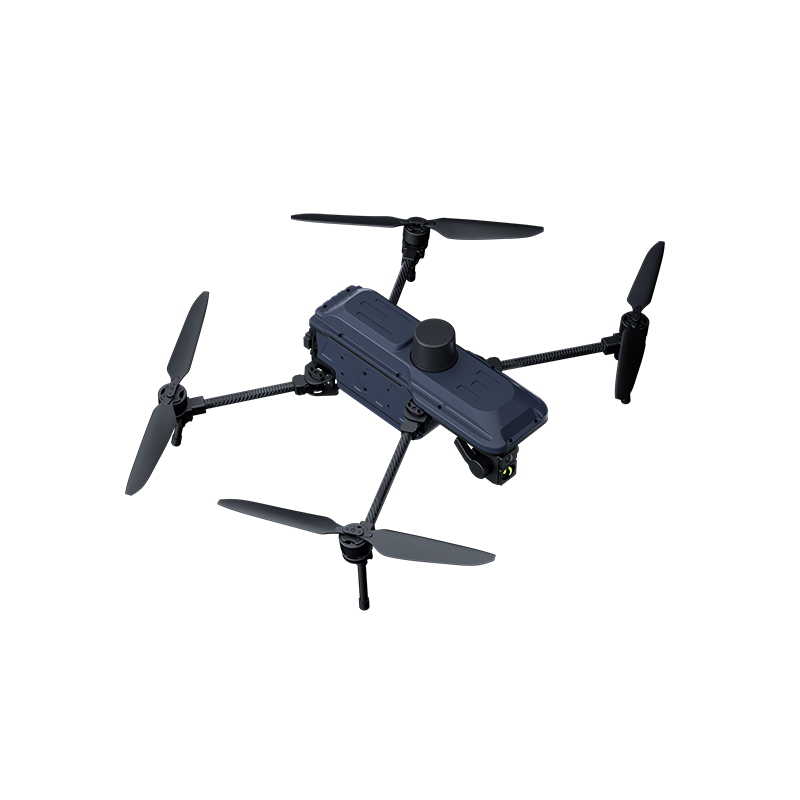

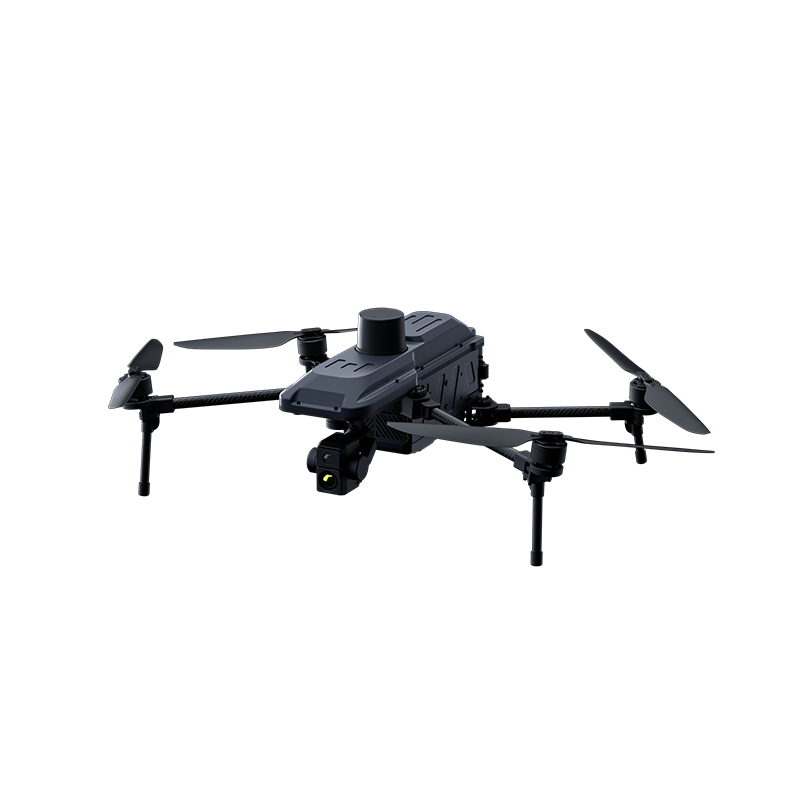

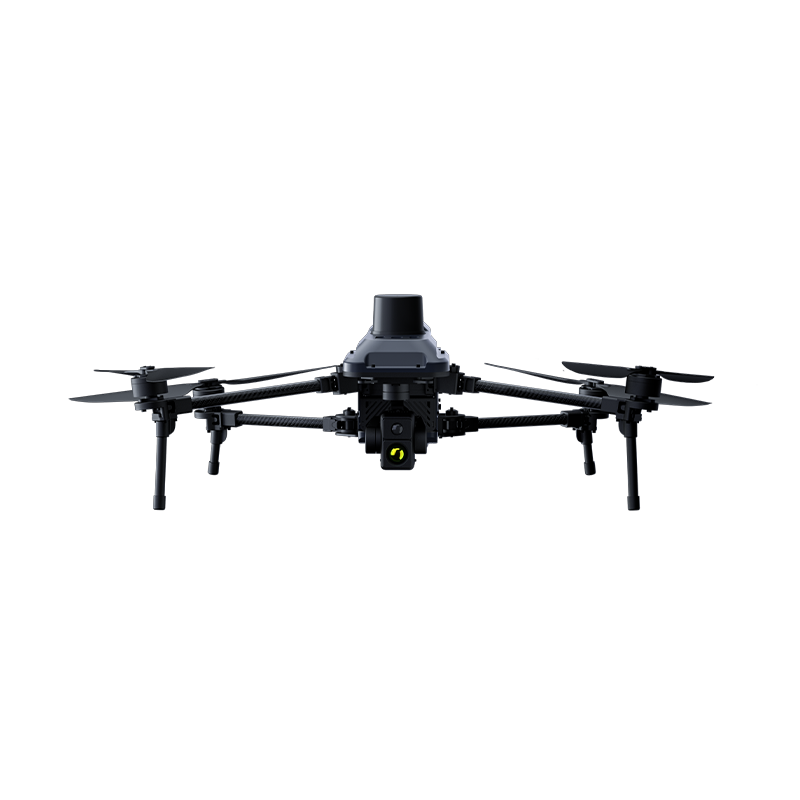

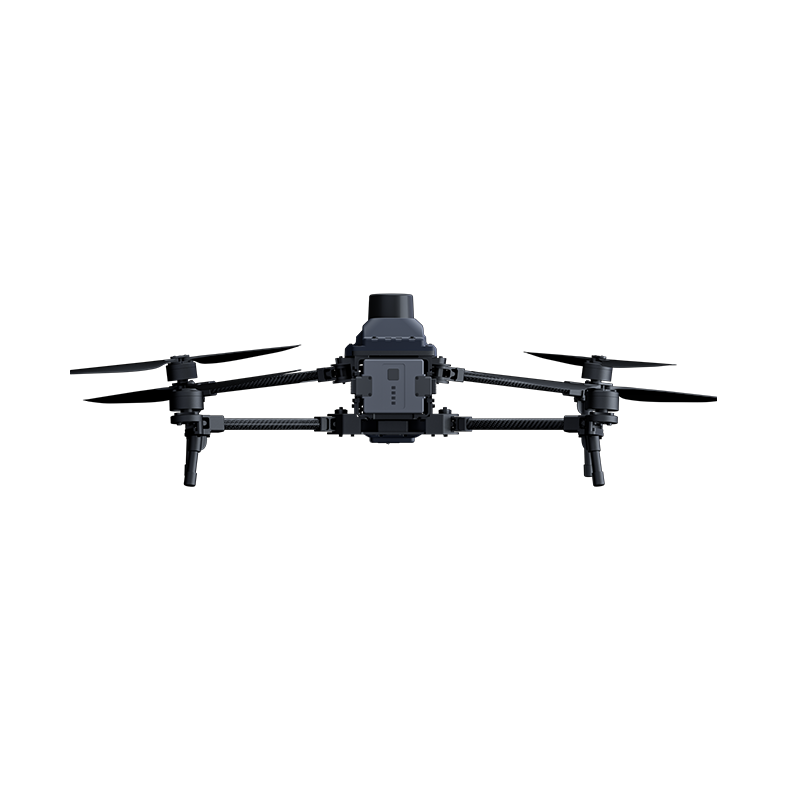

Nova-2T High Performance Quad-Rotor Industrial Drone

Nova-2T High Performance Quad-Rotor Industrial Drone

$2,499.00 USD
$2,499.00 USD
Sale Sold out
Shipping calculated at checkout.

⚠️ Please confirm with customer service that your address is deliverable before ordering. If cancellation occurs due to an undeliverable address without prior confirmation, the PayPal fee will be borne by the customer (not charged by our company).

Overview

Nova-2T is a professional-grade quad-rotor drone with a carbon fiber and plastic composite structure, which is both lightweight and high-strength. The folding design makes it easy to carry and can be quickly deployed to perform aerial photography, mapping and other tasks.
The drone has strong power and wind resistance of up to level 6, which meets the needs of long-term operation. The precise multi-mode positioning system ensures stable flight, and the hovering error is only ±0.1m. Equipped with HEQ K8T-V2 Gimbal Camera which combines thermal imaging and 4K visible-light video, the dual-sensor gimbal camera delivers intelligent target recognition and stable high-speed observation. Its lightweight design enables rapid integration into inspection, security, rescue, and other intelligent aerial systems. Small size, big possibilities.

UAV Platform

  • Type: Quadcopter
  • Wheelbase: 480mm
  • Takeoff Weight: 1730g
  • Maximum Payload: 300g
  • Recommended Payload: 300g

Flight Performance

  • Maximum Flight Time: 45–52 min
  • Hovering Time: 45–47 min
  • Recommended Cruising Speed: 8–15 m/s
  • Maximum Horizontal Speed: 20 m/s
  • Maximum Cruising Range: 25 km (at 9 m/s)
  • Maximum Ascent Speed: 6 m/s
  • Recommended Descent Speed: 4 m/s
  • Wind Resistance: Level 6
  • Maximum Takeoff Altitude: 4000m
  • Recommended Mission Altitude: Below 1000m

Navigation & Positioning

  • GNSS System: GPS + Galileo + BeiDou + GLONASS
  • Positioning Method: GNSS + Optical Flow + ToF
  • Target Resolution: Supported

Hovering Accuracy

  • Vertical:
    • ±0.1m (Vision Positioning)
    • ±1m (GNSS Positioning)
  • Horizontal:
    • ±0.3m (Vision Positioning)
    • ±1m (GNSS Positioning)

Communication & Control

  • Control Range: 10–12.5 km (Unobstructed & Interference-Free)
  • Communication Frequency:
    • Standard: 2.4GHz / 5.8GHz
    • Other frequency bands available upon request

Airframe

  • Main Material: Carbon Fiber + Plastic

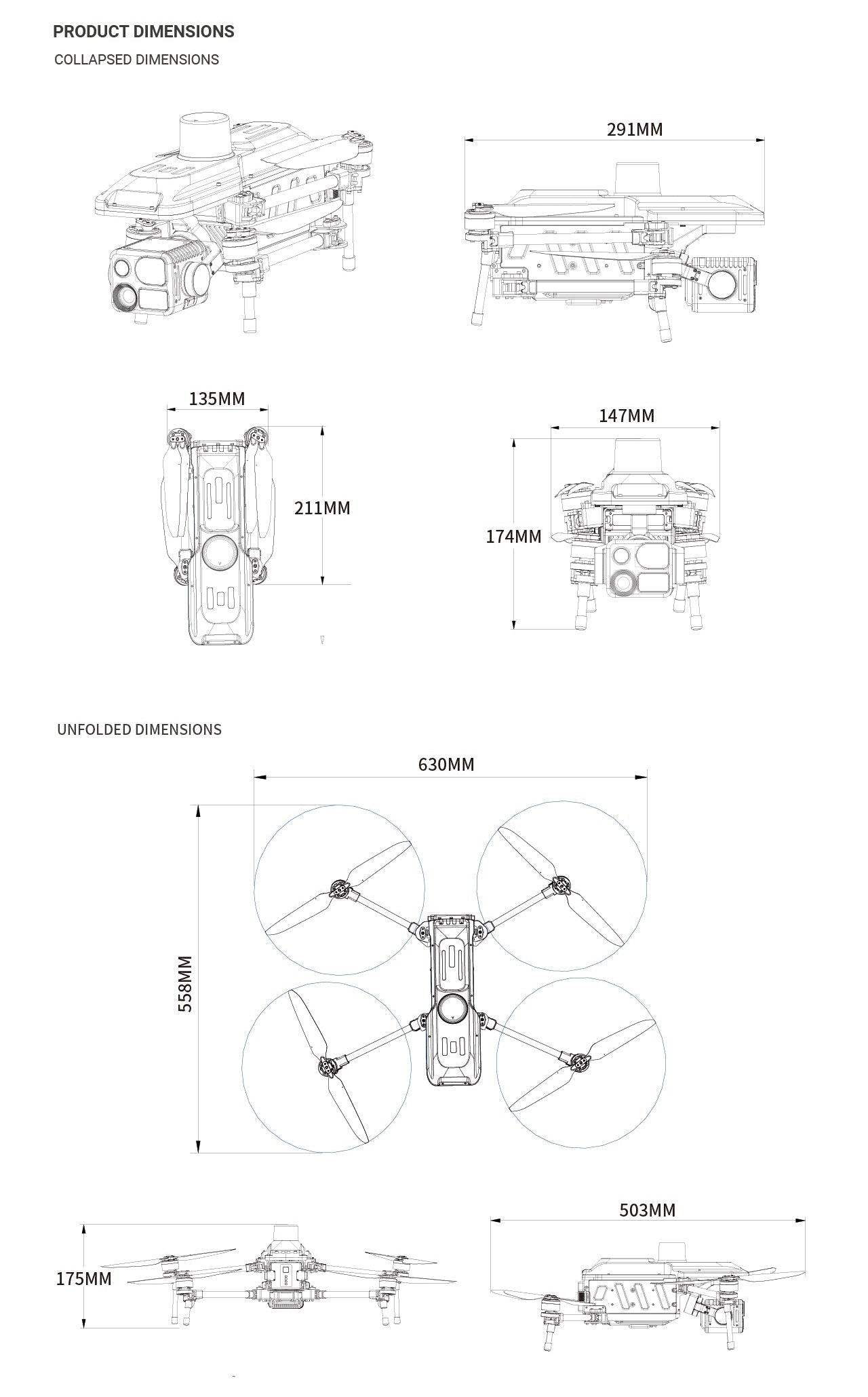

  • Unfolded Dimensions: 661 × 583 × 175 mm
  • Folding Design: Collapsible (with propellers)

Battery

  • Battery Capacity: 4S 12500mAh

K8T-V2 Dual-Sensor Gimbal Camera

  • Gimbal Type: 3-Axis Mechanical Stabilized Gimbal
  • Weight: 162g ± 5g
  • Operating Voltage: 12V–18V
  • Software Limit Angle:
    • Pitch: -90° to +30°
    • Yaw: -120° to +120°
  • Mechanical Range:
    • Pitch: -135° to +45°
    • Roll: -45° to +45°
    • Yaw: -135° to +135°
  • Maximum Control Speed: 180°/s
  • Angular Vibration Accuracy: ±0.005°
  • Interface: Network Interface / TTL / SBUS
  • Gimbal Modes: Target Recognition, Auto-Tracking
  • Operating Temperature: -40°C to +65°C
  • Communication Protocol: HEQ Proprietary Protocol
  • Protection Rating: IP44
  • Power Consumption: 8W

Thermal Imaging Camera

  • Detector Type: Uncooled VOx Infrared Focal Plane Detector
  • Thermal Resolution: 640 × 512 / 1280 × 1024 (Thermal Super Resolution)
  • Pixel Pitch: 12μm
  • Frame Rate: 25Hz / 30Hz
  • Spectral Response Band: 8–14μm
  • Focal Length: 13.5mm
  • Field of View (FOV): 31.9° × 25.7°
  • Aperture: F1.0

Wide-Angle Camera

  • Sensor Size: 1/2.8" CMOS
  • Effective Pixels: 8MP
  • Focal Length: 8mm
  • Aperture: F1.6
  • Field of View:
    • Horizontal (HFOV): 42.2°
    • Vertical (VFOV): 23.4°
    • Diagonal (DFOV): 48.8°

Video & Imaging

  • Visual Resolution: 4K (Wide-Angle)
  • Video Resolution: 4K @ 30fps
  • Photo Format: JPG
  • Video Format: MP4
  • Encoding Format: H.264 / H.265
  • AI Recognition & Tracking: Supported

Packing List:

1x Nova main unit

1x K8T-V2 gimbal payload

1x SCEPTER 15 remote controller1x12500 mAh Intelligent battery

1x Battery charger

1x Remote controller charger

1x EPP packaging case

1x Certificate of conformity

1x User manual (digital version, downloadable from the official website)

Shipping from China: Shipping 15-20days.（If you want to receive faster, you can contact customer service to negotiate the shipping method）

Warranty Time: 12 Months
