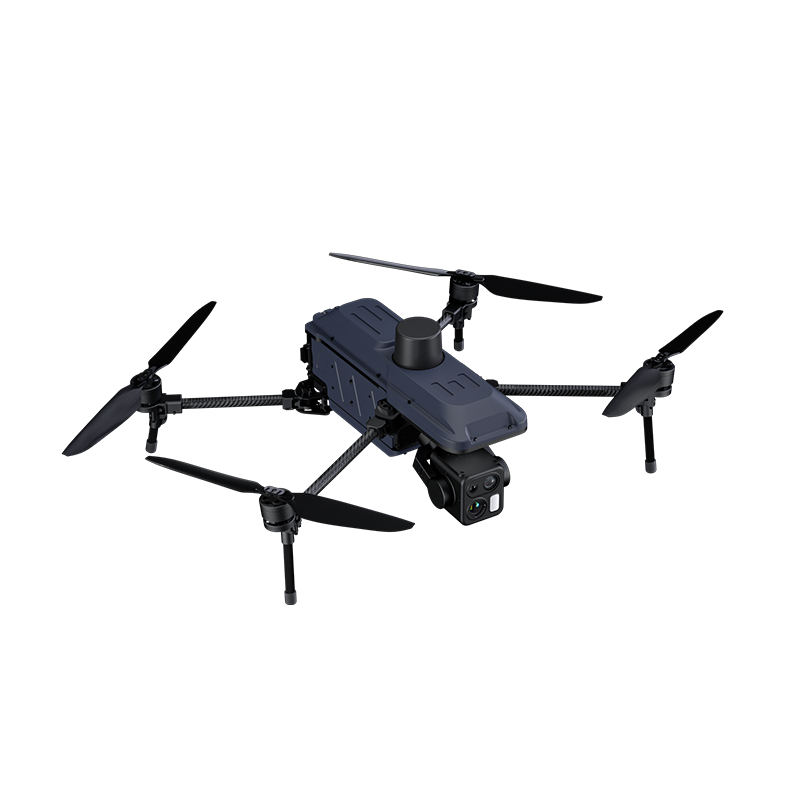

• Black drone with four propellers on a white background

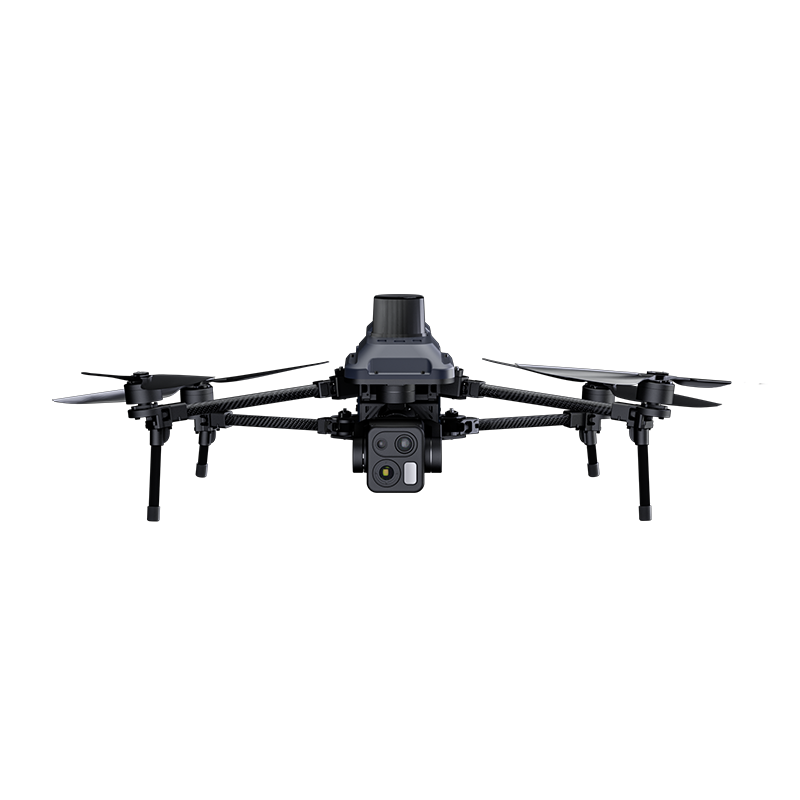

  • Back view of a black drone with camera on a white background

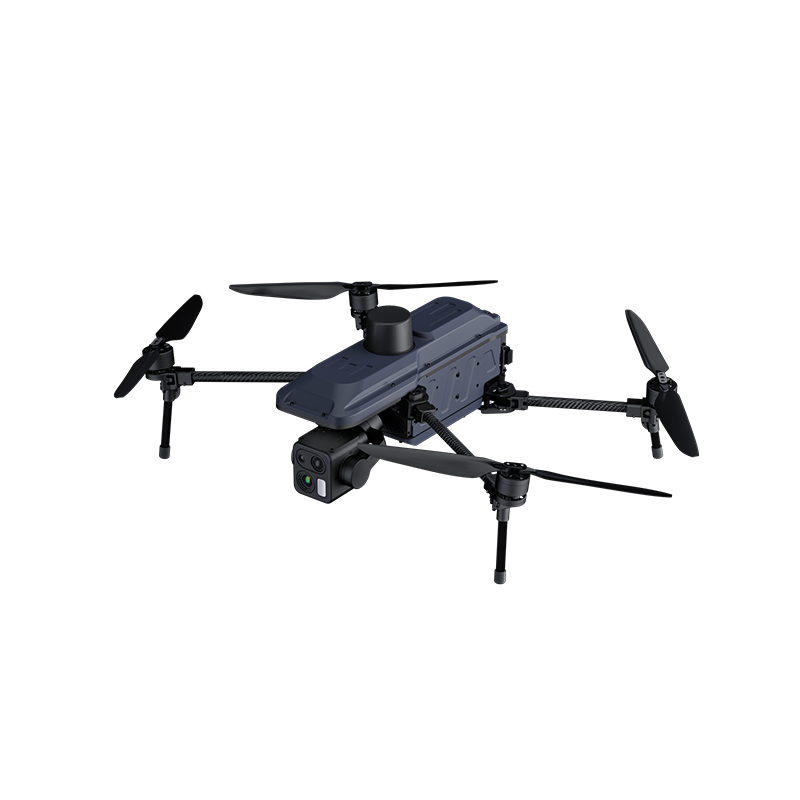

  • A black drone with folded propellers and a mounted mid-size camera on a white background
1 7

HEQ UAV TECH

Nova 4T-Mini High Performance Quad-Rotor Industrial Drone

Nova 4T-Mini High Performance Quad-Rotor Industrial Drone

$3,599.00 USD
$3,599.00 USD
Sale Sold out
Shipping calculated at checkout.

⚠️ Please confirm with customer service that your address is deliverable before ordering. If cancellation occurs due to an undeliverable address without prior confirmation, the PayPal fee will be borne by the customer (not charged by our company).

Overview

Nova-4T-Mini is a professional-grade quad-rotor drone with a carbon fiber and plastic composite structure, which is both lightweight and high-strength. The folding design makes it easy to carry and can be quickly deployed to perform aerial photography, mapping and other tasks.
The drone has strong power and wind resistance of up to level 6, which meets the needs of long-term operation. The precise multi-mode positioning system ensures stable flight, and the hovering error is only ±0.1m. Equipped with the K40T-Mini-B Quad-sensor gimbal camera, it integrates visible light/infrared/laser ranging. It supports stable observation and tracking under high-speed motion, and can achieve rapid target positioning with a 1200m laser ranging. The built-in 4T computing power AI chip can realize automatic recognition of targets such as personnel and vehicles. The whole machine weighs less than 250g
and is suitable for scenes such as power inspection and emergency rescue, realizing
a full-process closed loop from wide-area reconnaissance to precise positioning.

UAV Platform

  • Type: Quadcopter
  • Wheelbase: 480mm
  • Takeoff Weight: 1730g
  • Maximum Payload: 300g
  • Recommended Payload: 300g

Flight Performance

  • Maximum Flight Time: 45–52 min
  • Hovering Time: 45–47 min
  • Recommended Cruising Speed: 8–15 m/s
  • Maximum Horizontal Speed: 20 m/s
  • Maximum Cruising Range: 25 km (at 9 m/s)
  • Maximum Ascent Speed: 6 m/s
  • Recommended Descent Speed: 4 m/s
  • Wind Resistance: Level 6
  • Maximum Takeoff Altitude: 4000m
  • Recommended Mission Altitude: Below 1000m

Navigation & Positioning

  • GNSS System: GPS + Galileo + BeiDou + GLONASS
  • Positioning Method: GNSS + Optical Flow + ToF
  • Target Resolution: Supported

Hovering Accuracy

  • Vertical:
    • ±0.1m (Vision Positioning)
    • ±1m (GNSS Positioning)
  • Horizontal:
    • ±0.3m (Vision Positioning)
    • ±1m (GNSS Positioning)

Communication & Control

  • Control Range: 10–12.5 km (Unobstructed & Interference-Free)
  • Communication Frequency:
    • Standard: 2.4GHz / 5.8GHz
    • Other frequency bands available upon request

Airframe

  • Main Material: Carbon Fiber + Plastic
  • Unfolded Dimensions: 661 × 583 × 175 mm
  • Folding Design: Collapsible (with propellers)

Battery

  • Battery Capacity: 4S 12500mAh

K40T-Mini Quad-Sensor Gimbal Camera

  • Gimbal Type: Mechanical 3-Axis Stabilization
  • Control Angle Range:
    • Pitch: -135° to +45°
    • Roll: -45° to +45°
    • Yaw: -135° to +135°
  • Maximum Control Speed: 180°/s
  • Angle Jitter: ±0.005°
  • Interface: Network Port / Serial Port / SBUS

Thermal Imaging Camera

  • Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane Detector
  • Resolution: 640 × 512 / 1280 × 1024 (Infrared Super Resolution)
  • Pixel Pitch: 12μm
  • Frame Rate: 60Hz / 30Hz
  • Spectral Response Band: 8–14μm

Wide-Angle Camera

  • Sensor Size: 1/2.8"
  • Effective Pixels: 8MP
  • Focal Length: 8mm
  • Aperture: F1.6
  • Field of View (DFOV): 48.8°

Telephoto Camera

  • Sensor Size: 1/2.8"
  • Effective Pixels: 8MP
  • Aperture: F3.5
  • Focal Length: 25mm
  • Field of View (DFOV): 15°

Laser Rangefinder

  • Measurement Range: 5–1200m
  • Measurement Accuracy: 0.1m
Packing List:

1x Nova main unit

1x K40T-Mini gimbal payload

1x SCEPTER 15 remote controller1x12500 mAh Intelligent battery

1x Battery charger

1x Remote controller charger

1x EPP packaging case

1x Certificate of conformity

1x User manual (digital version, downloadable from the official website)

Shipping from China: Shipping 15-20days.（If you want to receive faster, you can contact customer service to negotiate the shipping method）

Warranty Time: 12 Months

TIPS: Our delivery fee includes taxes and fees,  the timeliness may be slower during the customs clearance process, please understand.

If you are unable to complete checkout due to regional or country-specific delivery restrictions, please contact our customer service via online chat for assistance. Before placing an order, carefully review the product details to ensure they meet your requirements. If you request an order cancellation after payment, PayPal will charge a service fee in accordance with its policy; this fee is the customer's responsibility and will be deducted from the refund. Thank you for your understanding and support.
