Swan Voyager K8T-V2

Swan Voyager K8T-V2

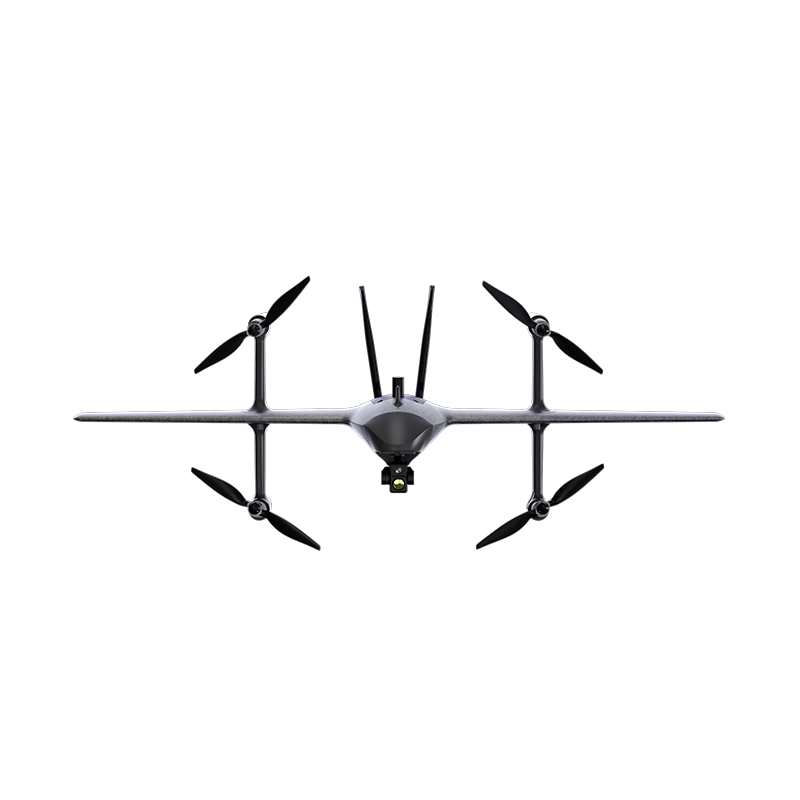

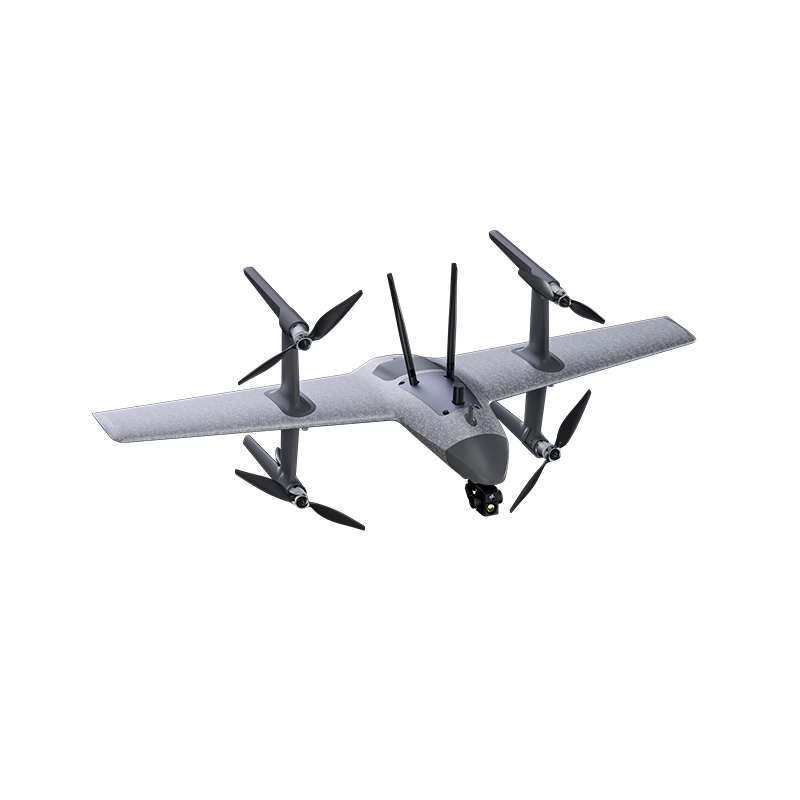

Voyager-K8T-V2 VTOL Fixed-Wing UAV is a reliable "eye" specifically designed for all-weather, multi-scenario missions. It combines the flexibility of vertical take-off and landing with the long-endurance advantages of a fixed-wing aircraft, offering a flight time of up to 60 minutes and a video transmission range of up to 15 kilometers, freeing operations from site and distance limitations. Equipped with the K8T-V2 dual-sensor gimbal camera, which integrates thermal imaging and an 8-megapixel wide-angle lens, it supports 4K ultra-high-definition video and infrared super-resolution enhancement, ensuring clear vision day and night. With the built-in 4 TOPS AI chip, the drone can intelligently identify and track personnel and vehicles, and can be seamlessly integrated into various smart platforms for security inspections, emergency response, industrial inspection, and more, enabling highly efficient automated operations.

The K8T-V2 dual-sensor gimbal camera integrates superior performance and advanced stabilization into one compact system. It combines thermal imaging with an 8-megapixel wide-angle lens, featuring infrared super-resolution enhancement for detailed detection and visible-light 4K ultra-HD video around the clock.

Equipped with a three-axis stabilized gimbal, it ensures smooth observation and tracking even during high-speed motion. Built-in AI computing power of 4 TOPS enables automatic recognition of targets such as people and vehicles. Weighing only 162 grams, it offers versatile adaptability across various scenarios and supports multiple protocol interfaces for seamless integration into security, inspection, rescue, and other intelligent platforms.

Platform

• Wingspan: 1.1m
• Empty Aircraft Weight: 1.12kg
• Maximum Takeoff Weight: 1.75kg
• Package Dimensions: 580 × 470 × 202 mm

Flight Performance

• Flight Duration: 50–60 minutes
• Flight Speed: 10–25 m/s
• Flight Range: 35–40 km
• Maximum Flight Altitude: 500m
• Wind Resistance: Level 5

Communication & Control

• Image Transmission Distance: 15km
• Remote Control & Image Transmission Frequency: 5.8GHz
• Image Transmission Resolution: 1080p

K8T-V2 Dual-Sensor Gimbal Camera

• Gimbal Type: 3-Axis Mechanical Stabilized Gimbal
• Weight: 162g ± 5g
• Operating Voltage: 12V–18V
• Software Limit Angle:
  • Pitch: -90° to +30°
  • Yaw: -120° to +120°
• Mechanical Range:
  • Pitch: -135° to +45°
  • Roll: -45° to +45°
  • Yaw: -135° to +135°
• Maximum Control Speed: 180°/s
• Angular Vibration Accuracy: ±0.005°
• Interface: Network Interface / TTL / SBUS
• Gimbal Modes: Target Recognition, Auto-Tracking
• Operating Temperature: -40°C to +65°C
• Communication Protocol: HEQ Proprietary Protocol
• Protection Rating: IP44
• Power Consumption: 8W

Thermal Imaging Camera

• Detector Type: Uncooled VOx Infrared Focal Plane Detector
• Thermal Resolution: 640 × 512 / 1280 × 1024 (Thermal Super Resolution)
• Pixel Pitch: 12μm
• Frame Rate: 25Hz / 30Hz
• Spectral Response Band: 8–14μm
• Focal Length: 13.5mm
• Field of View (FOV): 31.9° × 25.7°
• Aperture: F1.0

Wide-Angle Camera

• Sensor Size: 1/2.8" CMOS
• Effective Pixels: 8MP
• Focal Length: 8mm
• Aperture: F1.6
• Field of View:
  • Horizontal (HFOV): 42.2°
  • Vertical (VFOV): 23.4°
  • Diagonal (DFOV): 48.8°

Video & Imaging

• Visual Resolution: 4K (Wide-Angle)
• Video Resolution: 4K @ 30fps
• Photo Format: JPG
• Video Format: MP4
• Encoding Format: H.264 / H.265
• AI Recognition & Tracking: Supported

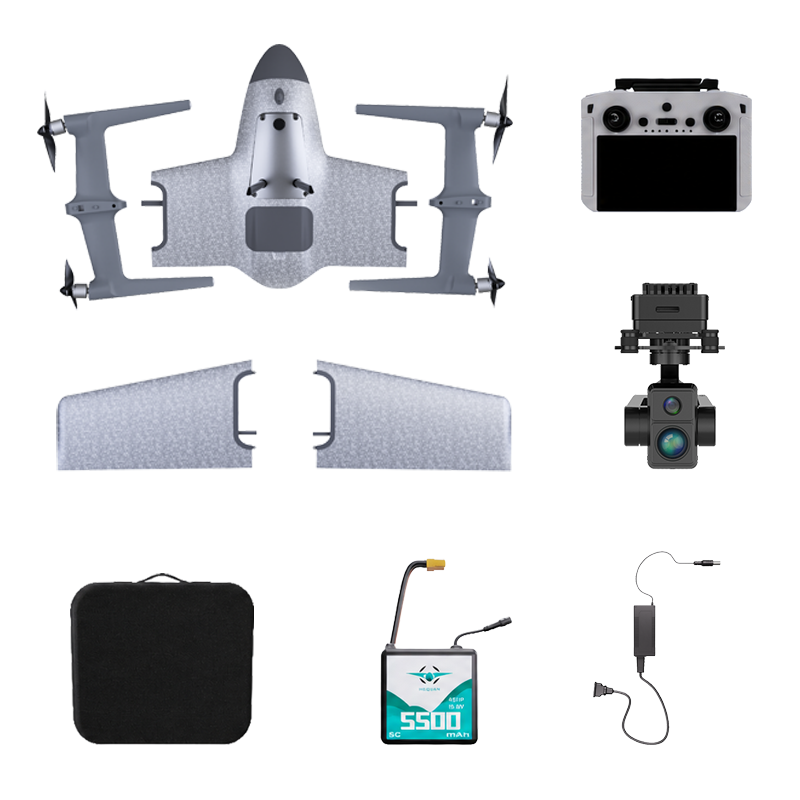

Packing List

1 x Swan-K1 aircraft

1 x HEQ K8T-V2 Dual-Sensor Gimbal Camera (Thermal Imaging+Visible Light)

1x set of quick detachable nylon propellers

1 x highlight display radio controller（8km image transmission）

1 x Carry case,

1 x 5500mAh 15.2V Lipo Battery,

1 x Power charger

1 x Aircraft User Manual and Disclaimer

Estimated shipping window: within 72 hours
