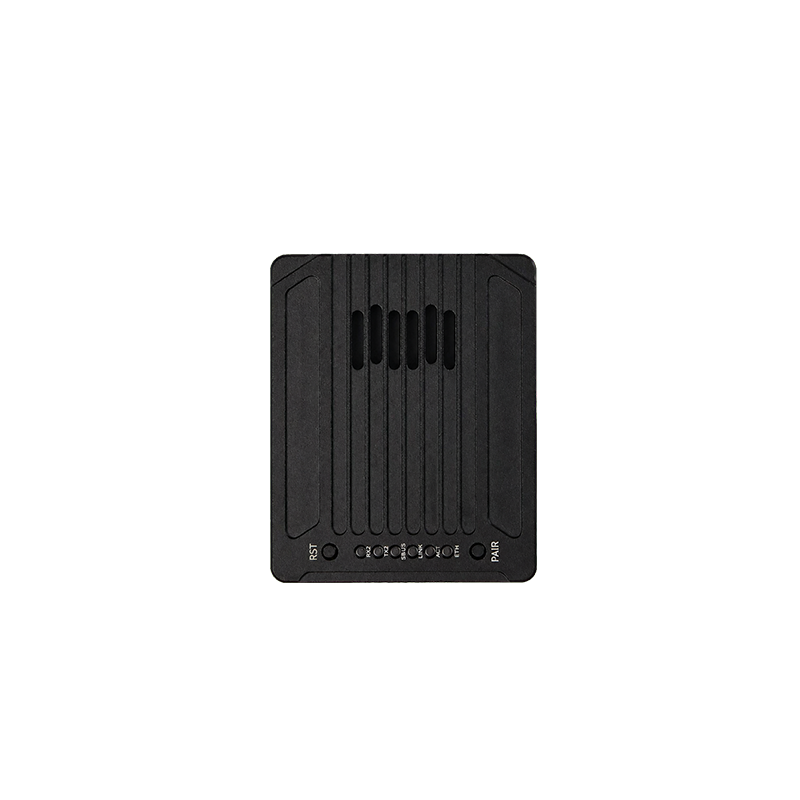

Scepter 15 Air Unit / Receiver
The Scepter 15 Air Unit is an onboard communication module designed for UAVs, UGVs, USVs, and other intelligent unmanned systems. It is designed to work with the Scepter 15 Remote Controller as part of a complete long-range control and data transmission solution.
Using dual-band frequency-hopping technology across 2.4 GHz and 5.8 GHz, the system maintains stable communication in complex electromagnetic environments and provides a maximum communication range of up to 15 km.
The air unit supports real-time HD video transmission, multi-channel data communication, remote-control signal transmission, and integration with flight controllers and payload devices. Its open architecture supports secondary development and MAVLink integration, making it suitable for customized industrial applications.
Compact and lightweight, the air unit weighs only 50 g without antennas and can be integrated into unmanned platforms where space and payload capacity are limited.
You can go to our HEQUAVTECH official website to download the Assistant software and Manuals.
Communication System
-
Antennas: Dual antennas
-
Operating Frequencies: 2.4 GHz and 5.8 GHz
-
Channels: 7 + 7 channels
-
Maximum Communication Range: Up to 15 km
-
EIRP: 15-29 dBm
-
Antenna Gain: 3 dBi
-
Control Signal: 16-channel SBUS
The maximum communication range is measured under suitable operating conditions. Actual performance may vary depending on the environment, installation, interference, and antenna configuration.
Interfaces
-
SBUS Interface: 3-pin
-
UART Interface for Flight Controller Connection: 4-pin
-
Network Interface: 4-pin
-
USB Interface: 4-pin
Electrical and Environmental Specifications
-
Operating Voltage: 12-27 V
-
Operating Temperature: -10°C to +45°C
Physical Specifications
-
Weight Without Antennas: 50 g
-
Dimensions Without Antennas: 57 × 47 × 18.1 mm
Compatibility
-
Compatible with the Scepter 15 Remote Controller
-
Suitable for UAVs, UGVs, USVs, and other unmanned platforms
-
Supports integration with flight controllers, network cameras, and compatible payload devices
-
Supports MAVLink-based applications and secondary development

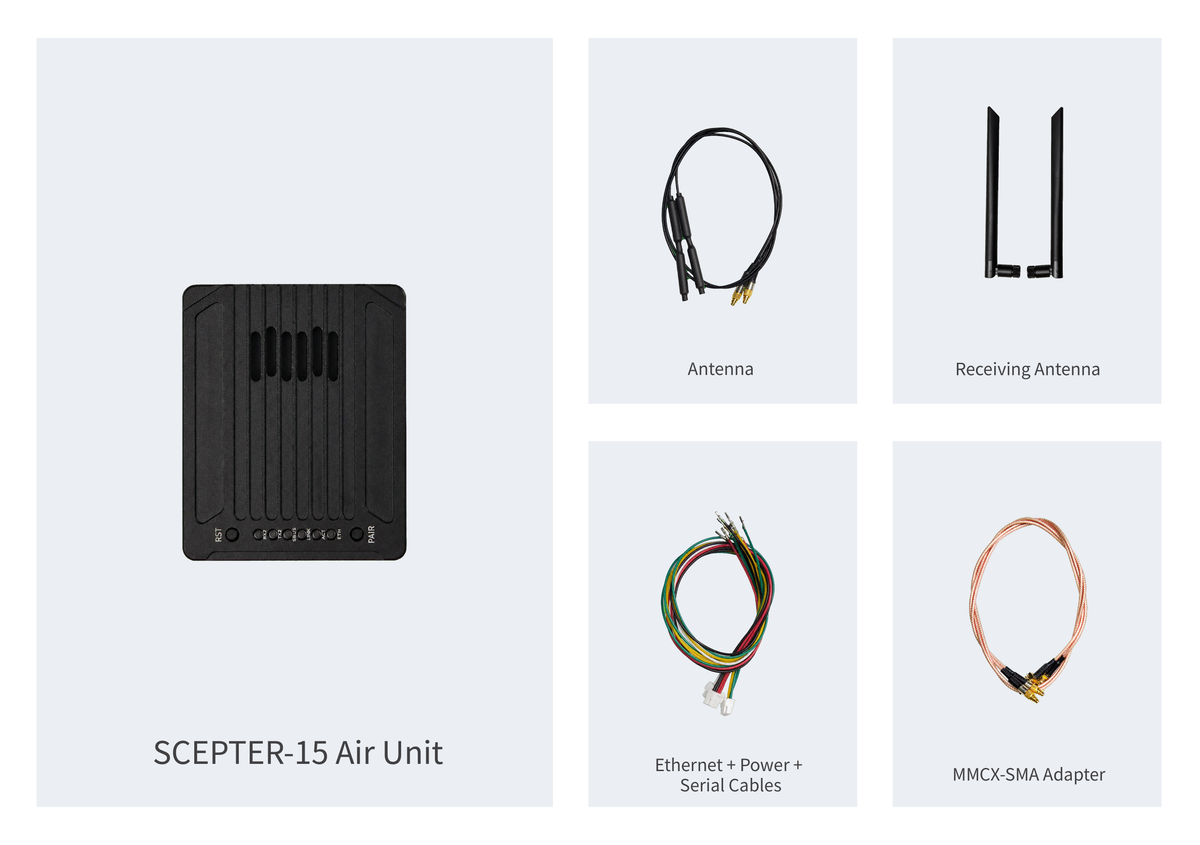

Packing List: Scepter 15 Air Unit, Antenna, Cables
More details can contact our online customer service.
