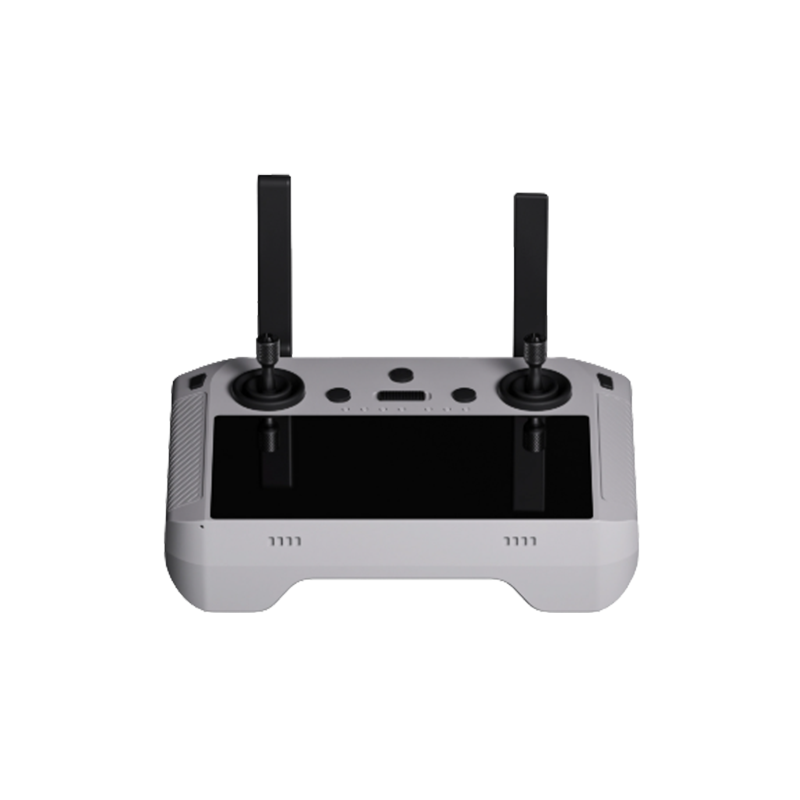

Scepter 15 Remote Controller
Scepter 15 is a professional control platform designed for a wide range of operational scenarios. It is specifically developed for UAVs, UGVs, USVs, and other intelligent unmanned systems.
The system adopts dual-band frequency hopping technology (2.4GHz + 5.8GHz) to ensure stable communication in complex electromagnetic environments, providing a communication range of up to 15 km. It supports real-time high-definition video transmission, multi-channel data communication, remote control, and seamless integration with various payload devices.
Built on an open architecture, the platform supports secondary development, offers a comprehensive SDK, and is compatible with mainstream middleware such as MAVLink, enabling rapid integration into diverse industry applications.
Equipped with a built-in battery that provides up to 6 hours of continuous operation, an IP53 protection rating, and a modular design adaptable to various operating environments, SCepter 15 can quickly connect with different unmanned platforms to achieve stable control and establish a complete long-range monitoring and command solution.
You can go to our HEQUAVTECH official website to download the Assistant software and Manuals.

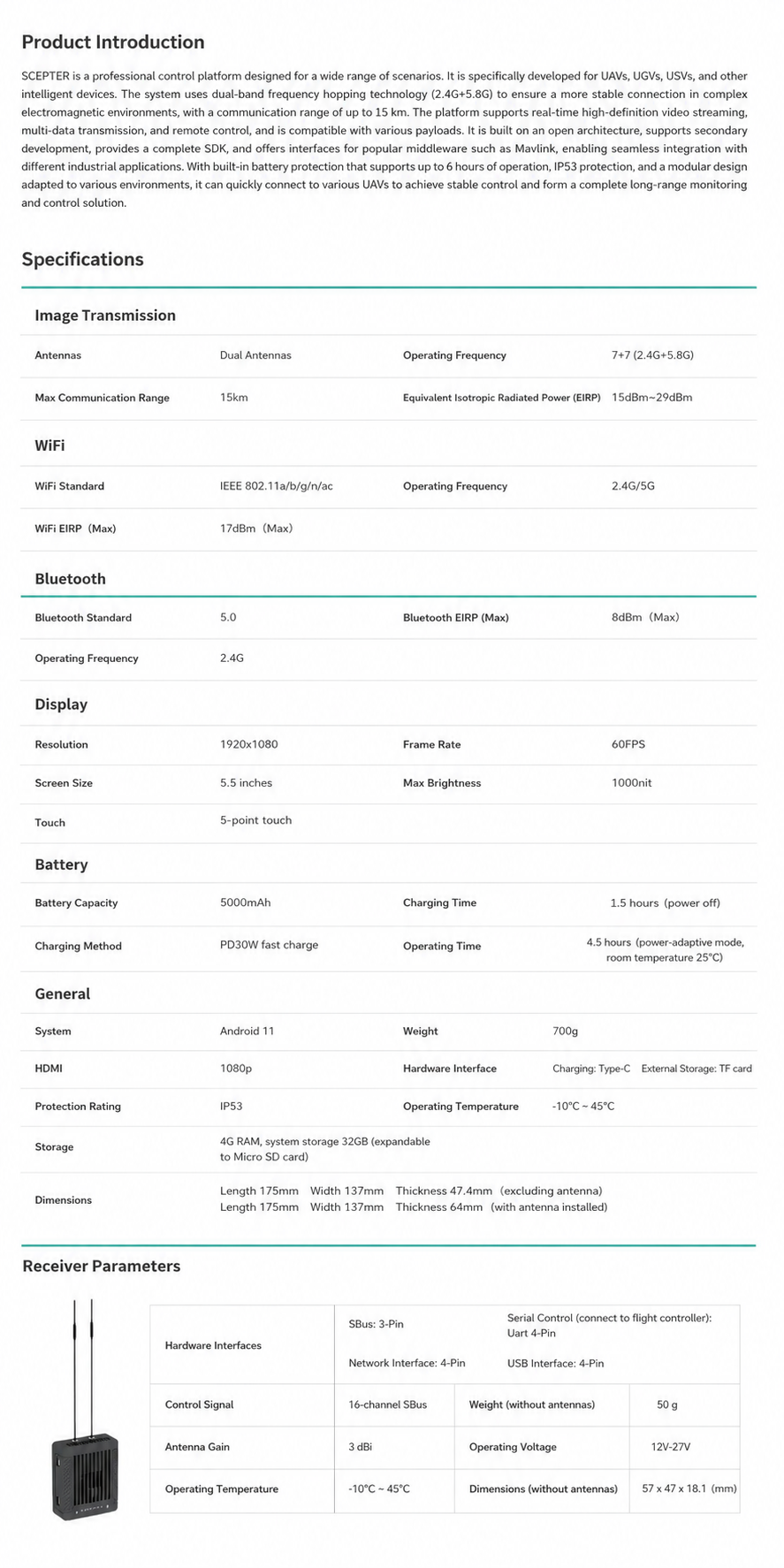

Image Transmission System
- Antennas: Dual Antennas
- Operating Frequency: 2.4GHz + 5.8GHz (7+7 Channels)
- Maximum Communication Range: 15km
- EIRP (Equivalent Isotropic Radiated Power): 15dBm–29dBm
Wi-Fi
- Wi-Fi Standard: IEEE 802.11a/b/g/n/ac
- Operating Frequency: 2.4GHz / 5GHz
- Maximum Wi-Fi EIRP: 17dBm
Bluetooth
- Bluetooth Version: 5.0
- Operating Frequency: 2.4GHz
- Maximum Bluetooth EIRP: 8dBm
Display
- Resolution: 1920 × 1080
- Refresh Rate: 60FPS
- Screen Size: 5.5 Inches
- Maximum Brightness: 1000 nits
- Touchscreen: 5-Point Multi-Touch
Battery
- Battery Capacity: 5000mAh
- Charging Method: PD 30W Fast Charging
- Charging Time: 1.5 Hours (Power Off)
- Operating Time: Up to 4.5 Hours*
* Tested at room temperature (25°C) in adaptive power mode.
System & Hardware
- Operating System: Android 11
- Memory: 4GB RAM
- Internal Storage: 32GB
- Expandable Storage: MicroSD Card
- HDMI Output: 1080p
- Hardware Interface: USB Type-C
- Protection Rating: IP53
- Operating Temperature: -10°C to +45°C
Dimensions (Without Antennas)
- Length: 175mm
- Width: 137mm
- Thickness: 47.4mm
Dimensions (With Antennas)
- Length: 175mm
- Width: 137mm
- Thickness: 64mm
Interfaces
- SBUS: 3-Pin
- UART (Flight Controller Connection): 4-Pin
- Network Interface: 4-Pin
- USB Interface: 4-Pin
Performance
- Control Signal: 16-Channel SBUS
- Antenna Gain: 3 dBi
- Operating Voltage: 12V–27V
- Operating Temperature: -10°C to +45°C
Physical Specifications
- Weight (Without Antennas): 50g
- Dimensions (Without Antennas): 57 × 47 × 18.1 mm
Packing List:1*H50T Penta-Sensor AI Gimbal Camera
More details can contact our online customer service.
