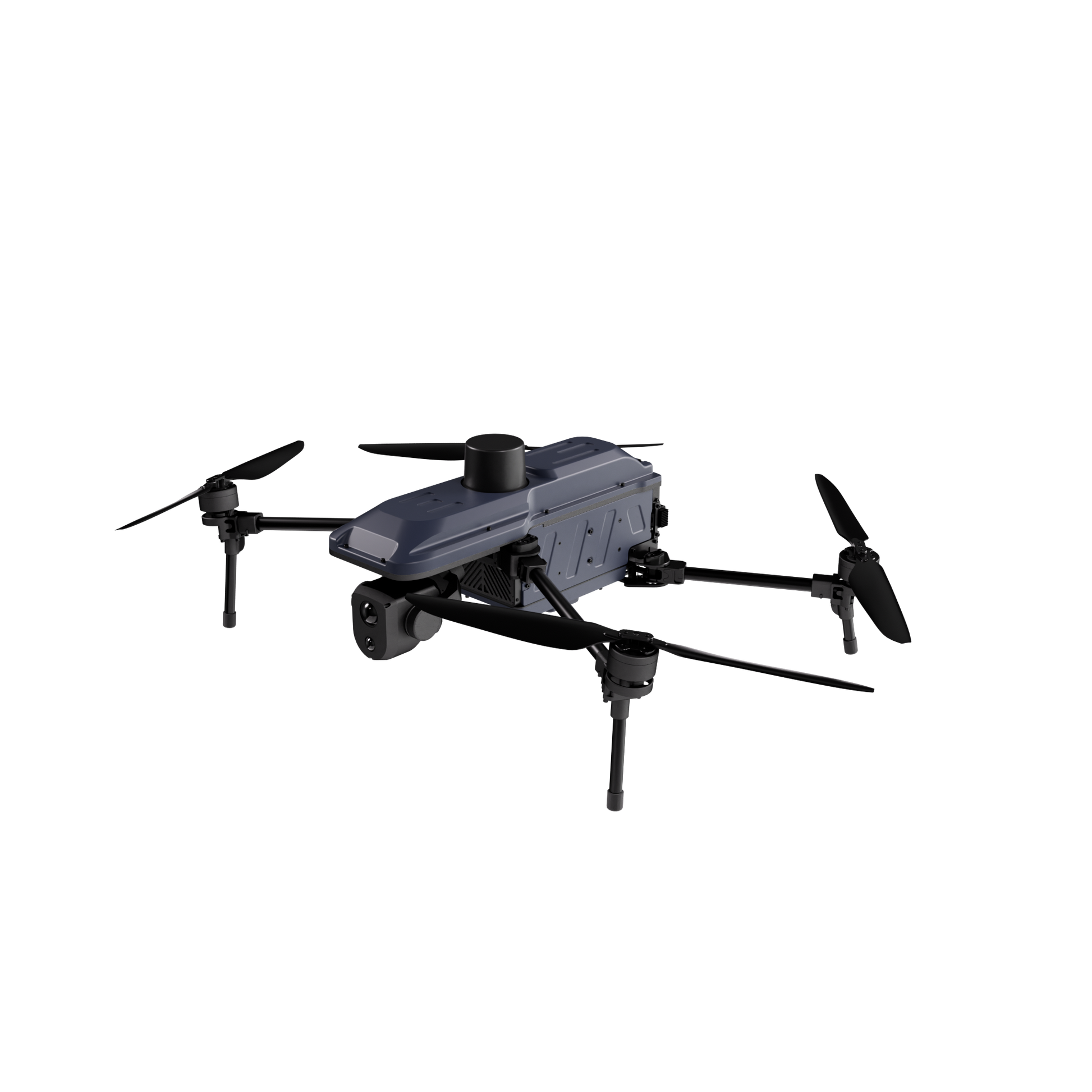

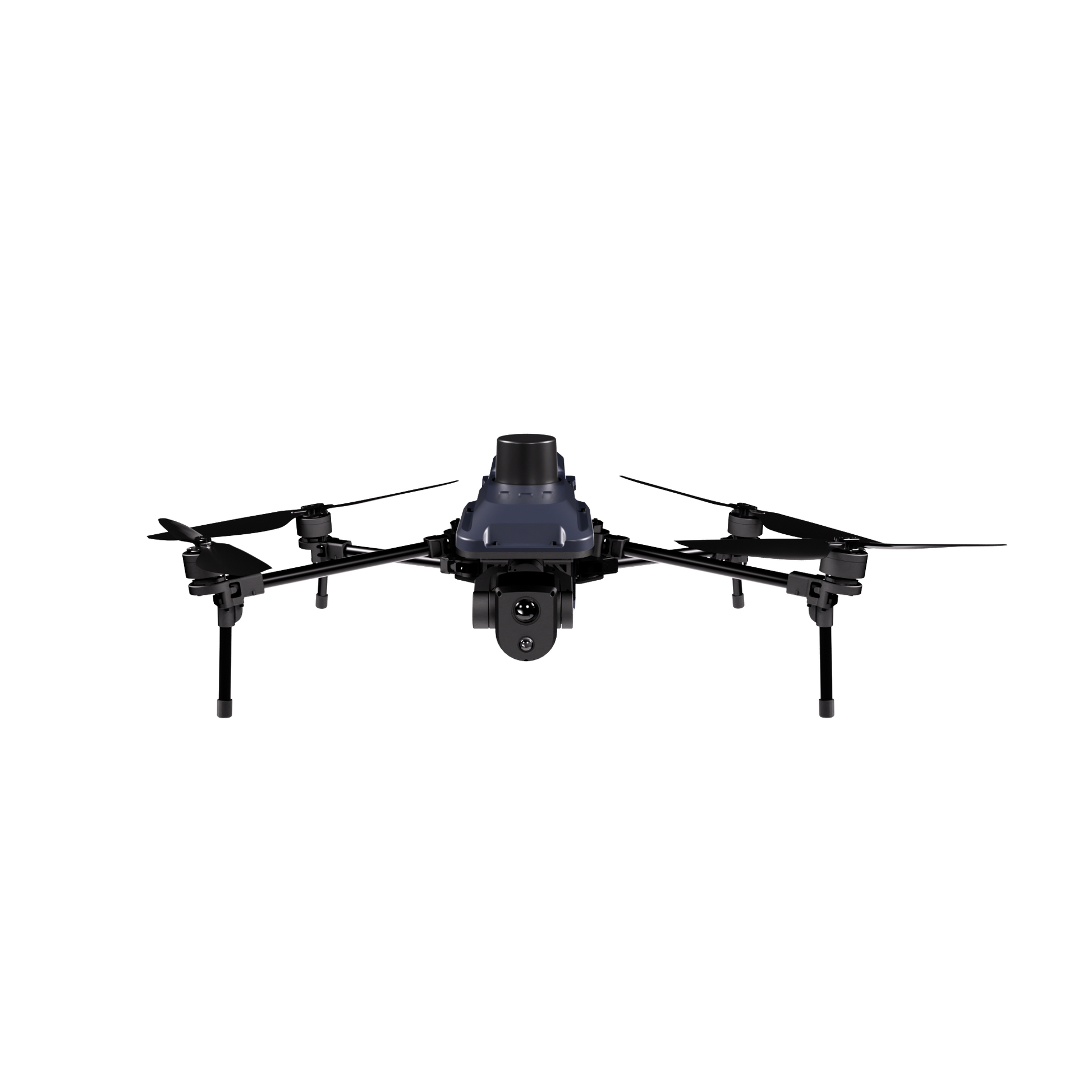

• Black drone with four propellers on a white background

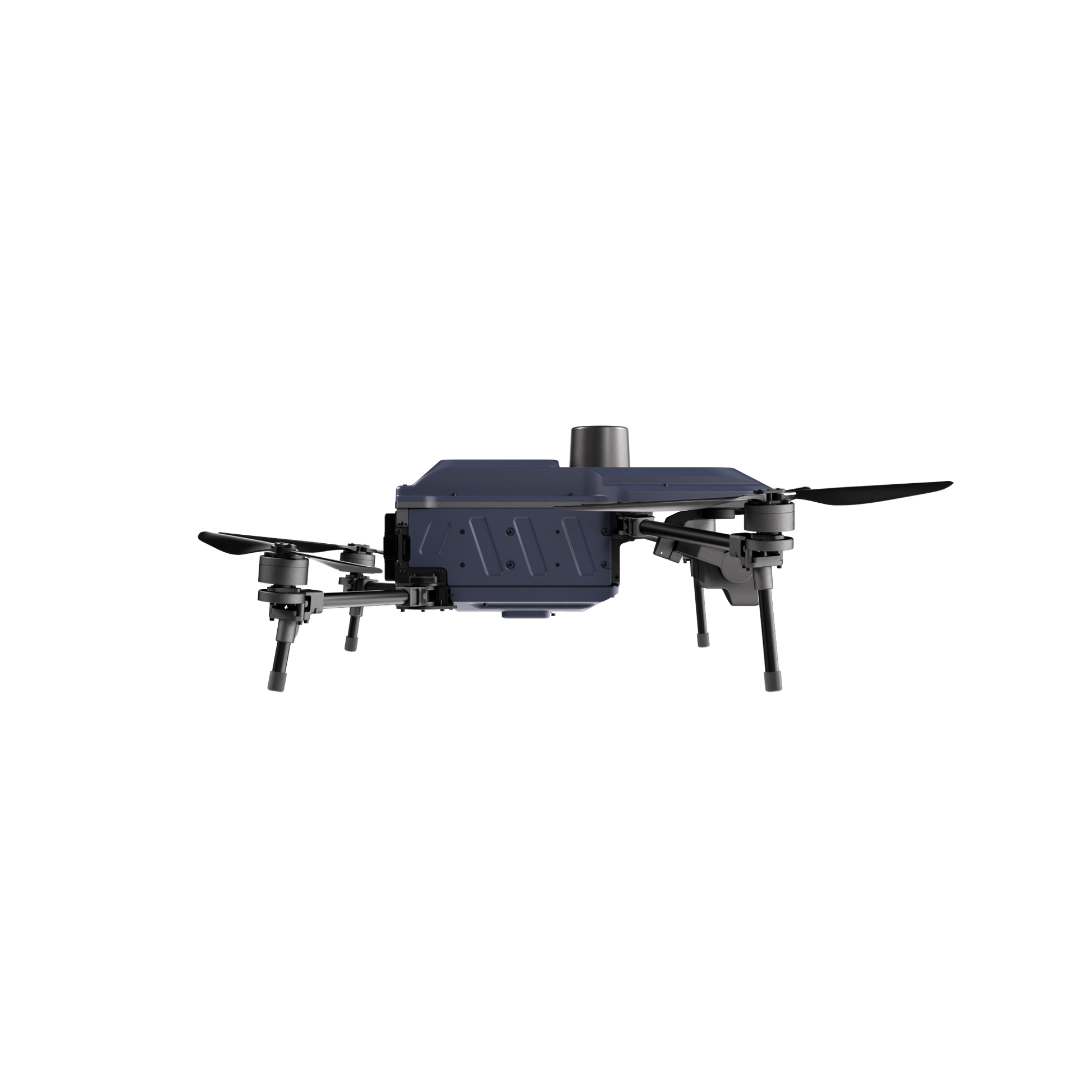

  • Back view of a black drone with camera on a white background
1 7

HEQ UAV TECH

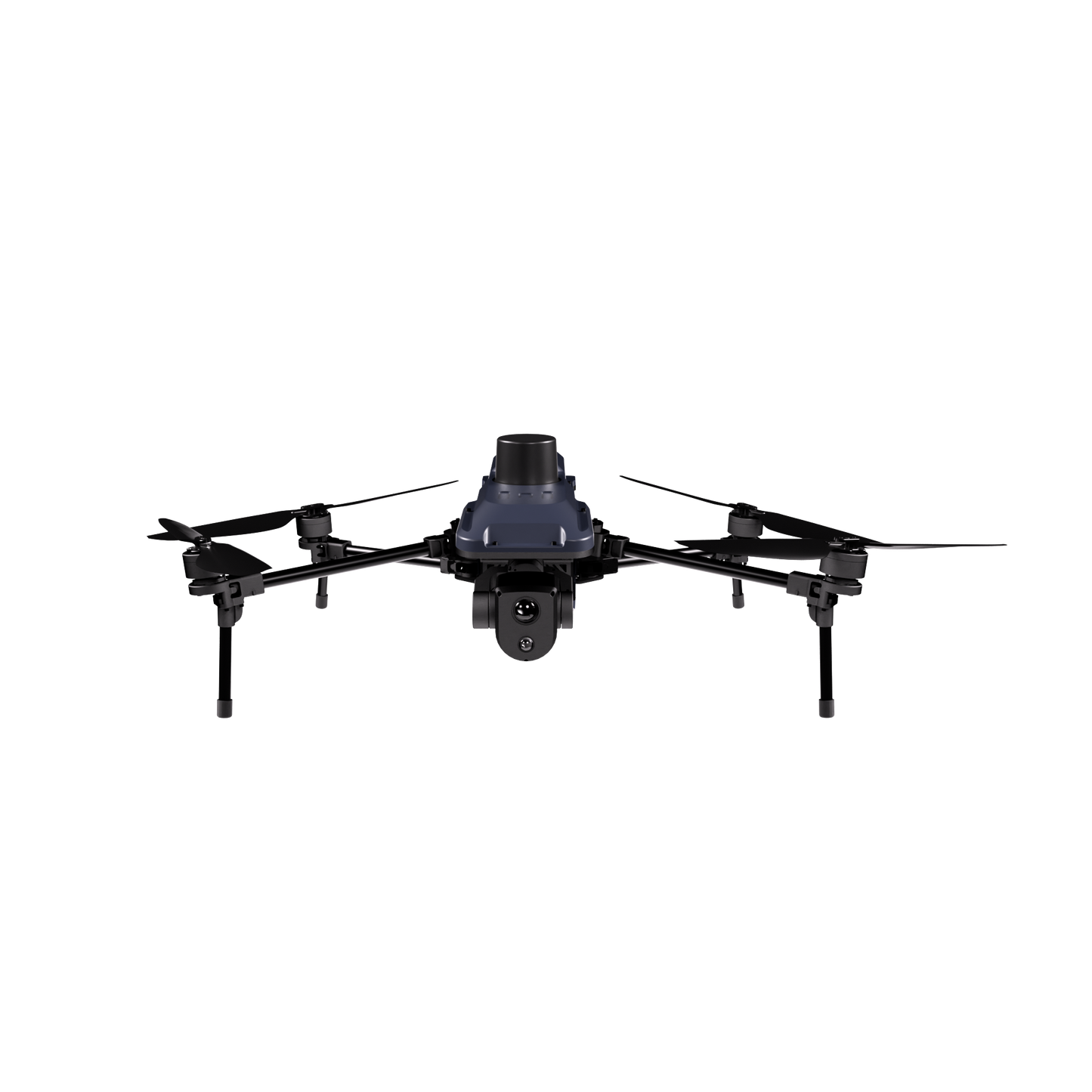

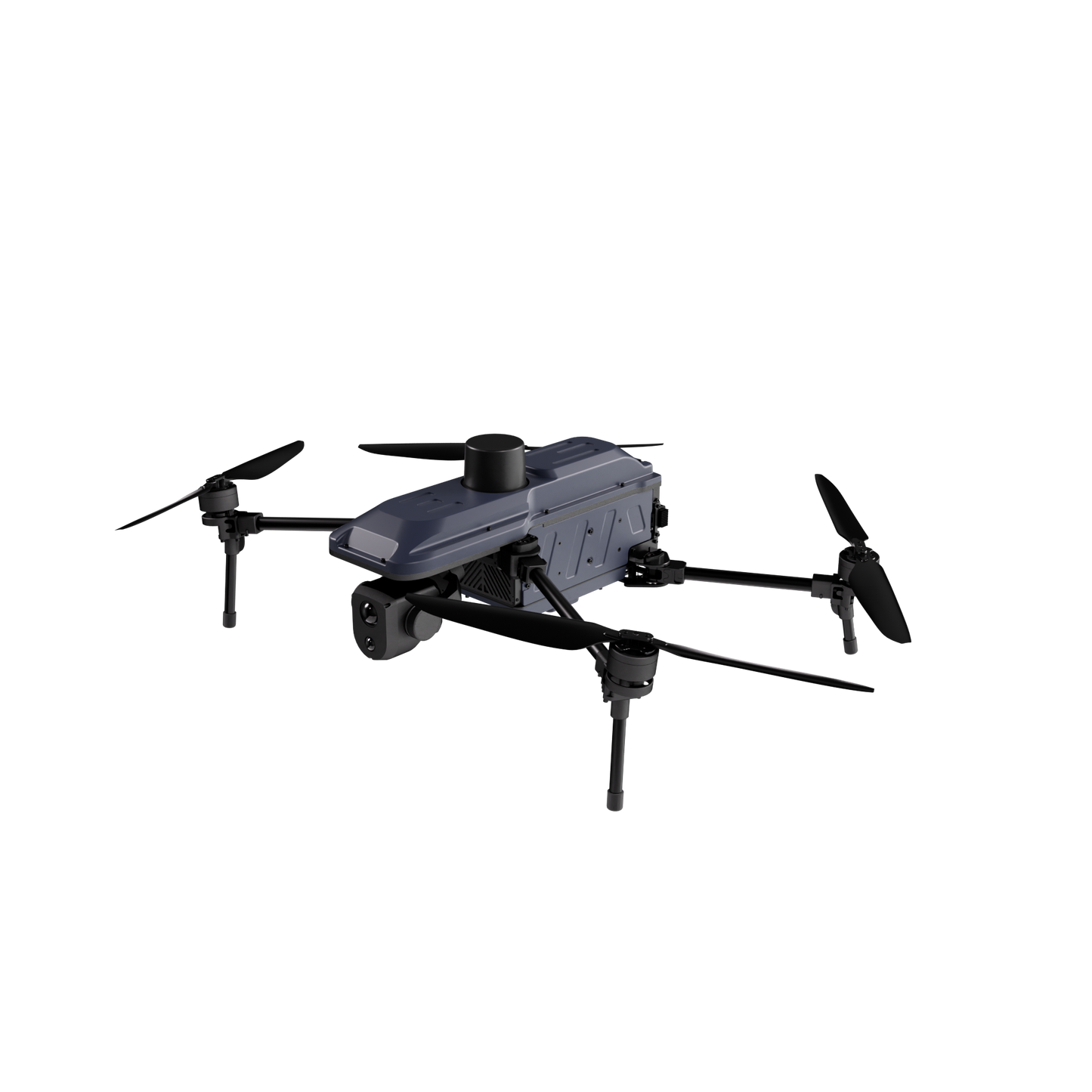

Nova-K11 High Performance Quad-Rotor Industrial Drone

Nova-K11 High Performance Quad-Rotor Industrial Drone

$1,799.00 USD
$1,799.00 USD
Sale Sold out
Shipping calculated at checkout.

⚠️ Please confirm with customer service that your address is deliverable before ordering. If cancellation occurs due to an undeliverable address without prior confirmation, the PayPal fee will be borne by the customer (not charged by our company).

Overview

Nova-K11 is a professional-grade quad-rotor drone with a carbon fiber and plastic composite structure, which is both lightweight and high-strength. The folding design makes it easy to carry and can be quickly deployed to perform aerial photography, mapping and other tasks.
The drone has strong power and wind resistance of up to level 6, which meets the needs of long-term operation. Equipped with HEQ K11 Dual-Sensor Camera, with dual 48MP visible light lenses, it delivers stable and clear imaging, supporting up to 16x hybrid zoom to observe long-distance targets and capture rich detail. It significantly improves operational efficiency in inspection, mapping, security and other missions. The K11 integrates a 3-axis stabilization system and supports forward, downward, and manual angle adjustment. Combined with intelligent image processing algorithms, it ensures consistent image quality and clarity across various flight conditions. It is suitable for a variety of scenarios such as agriculture, security, emergency rescue, etc. It is a reliable multi-functional industry drone.

UAV Platform

  • Type: Quadcopter
  • Wheelbase: 480mm
  • Takeoff Weight: 1730g
  • Maximum Payload: 300g
  • Recommended Payload: 300g

Flight Performance

  • Maximum Flight Time: 45–52 min
  • Hovering Time: 45–47 min
  • Recommended Cruising Speed: 8–15 m/s
  • Maximum Horizontal Speed: 20 m/s
  • Maximum Cruising Range: 25 km (at 9 m/s)
  • Maximum Ascent Speed: 6 m/s
  • Recommended Descent Speed: 4 m/s
  • Wind Resistance: Level 6
  • Maximum Takeoff Altitude: 4000m
  • Recommended Mission Altitude: Below 1000m

Navigation & Positioning

  • GNSS System: GPS + Galileo + BeiDou + GLONASS
  • Positioning Method: GNSS + Optical Flow + ToF
  • Target Resolution: Supported

Hovering Accuracy

  • Vertical:
    • ±0.1m (Vision Positioning)
    • ±1m (GNSS Positioning)
  • Horizontal:
    • ±0.3m (Vision Positioning)
    • ±1m (GNSS Positioning)

Communication & Control

  • Control Range: 10–12.5 km (Unobstructed & Interference-Free)
  • Communication Frequency:
    • Standard: 2.4GHz / 5.8GHz
    • Other frequency bands available upon request

Airframe

  • Main Material: Carbon Fiber + Plastic
  • Unfolded Dimensions: 661 × 583 × 175 mm
  • Folding Design: Collapsible (with propellers)

Battery

  • Battery Capacity: 4S 12500mAh


K11 Dual-Sensor Gimbal Camera

  • Gimbal Type: 3-Axis Mechanical Stabilized Gimbal
  • Weight: 195g ± 5g
  • Operating Voltage: 12V–18V

Software Limit Angle

  • Pitch: -90° to +30°
  • Yaw: -120° to +120°

Mechanical Range

  • Pitch: -135° to +45°
  • Roll: -45° to +45°
  • Yaw: -135° to +135°
  • Maximum Control Speed: 180°/s
  • Angular Vibration Accuracy: ±0.005°
  • Interface: Network Interface / TTL / SBUS
  • Gimbal Modes: Recognition, Auto-Tracking
  • Operating Temperature: -40°C to +65°C
  • Communication Protocol: HEQ Proprietary Protocol
  • Protection Rating: IP54
  • Power Consumption: 12W

Wide-Angle Camera

  • Sensor Size: 1/2"
  • Effective Pixels: 48MP
  • Focal Length: 4.49mm
  • Aperture: F2.8

Field of View

  • Horizontal: 71°
  • Vertical: 56°
  • Diagonal: 84° ± 1°

Telephoto Camera

  • Sensor Size: 1/2"
  • Effective Pixels: 48MP
  • Focal Length: 15.2–50mm
  • Aperture: F3.7–F4.6

Field of View

  • Horizontal: 7.4°
  • Vertical: 5.6°
  • Diagonal: 9.3°

Video & Imaging

  • Hybrid Zoom: 160×
  • Optical Zoom: 11×
  • Visible-Light Resolution: 48MP (Wide-Angle + Telephoto)
  • Video Resolution: 4K @ 30fps
  • Photo Format: JPG
  • Video Format: MP4
  • Encoding Format: H.264 / H.265
  • AI Recognition & Tracking: Supported

Packing List:

1x Nova main unit

1x K11 Dual-Sensor Gimbal Camera

1x SCEPTER 15 remote controller1x12500 mAh Intelligent battery

1x Battery charger

1x Remote controller charger

1x EPP packaging case

1x Certificate of conformity

1x User manual (digital version, downloadable from the official website)

Shipping from China: Shipping 15-20days.（If you want to receive faster, you can contact customer service to negotiate the shipping method）

Warranty Time: 12 Months
