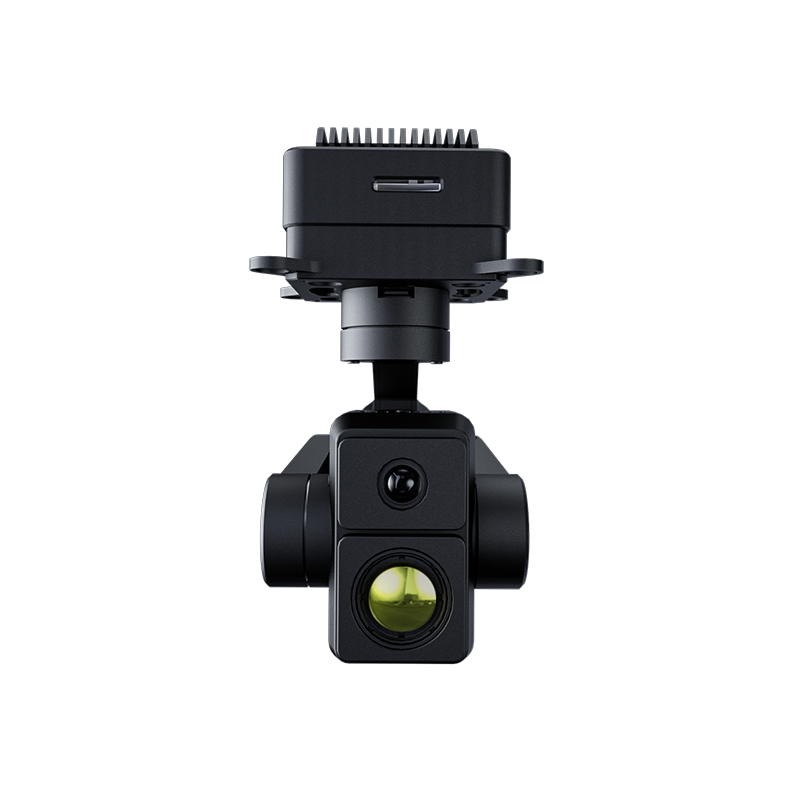

• a dual-sensor gimbal camera on a white background front view

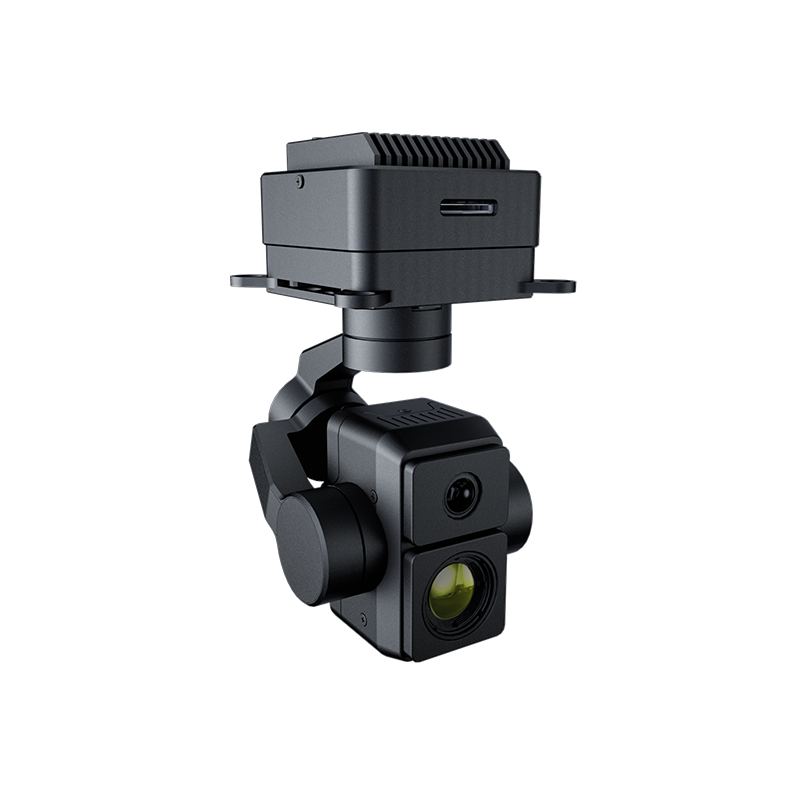

  • a dual-sensor gimbal camera on a white background back view

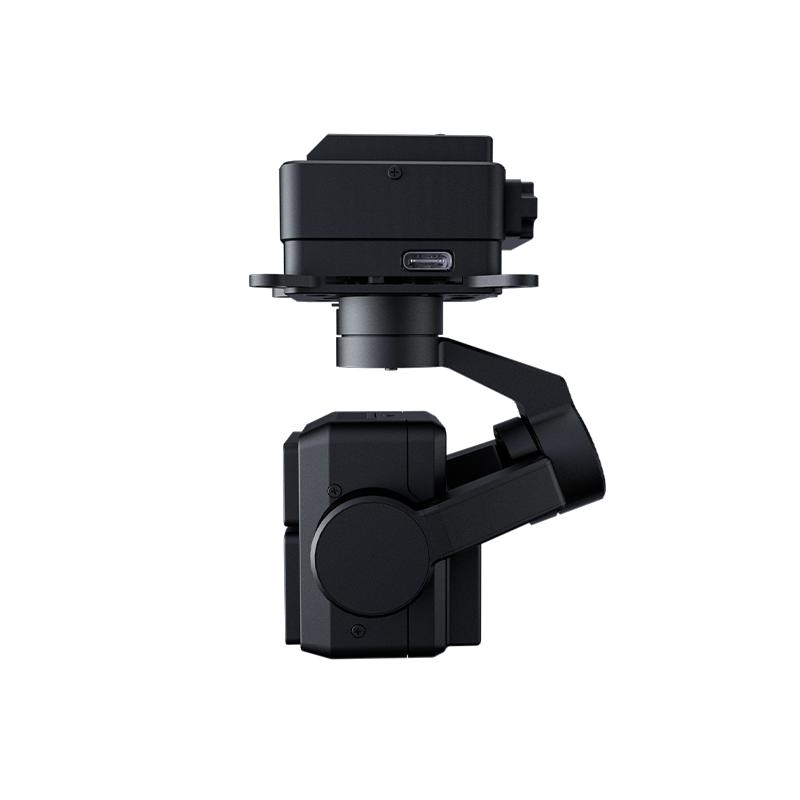

  • a dual-sensor gimbal camera on a white background side view

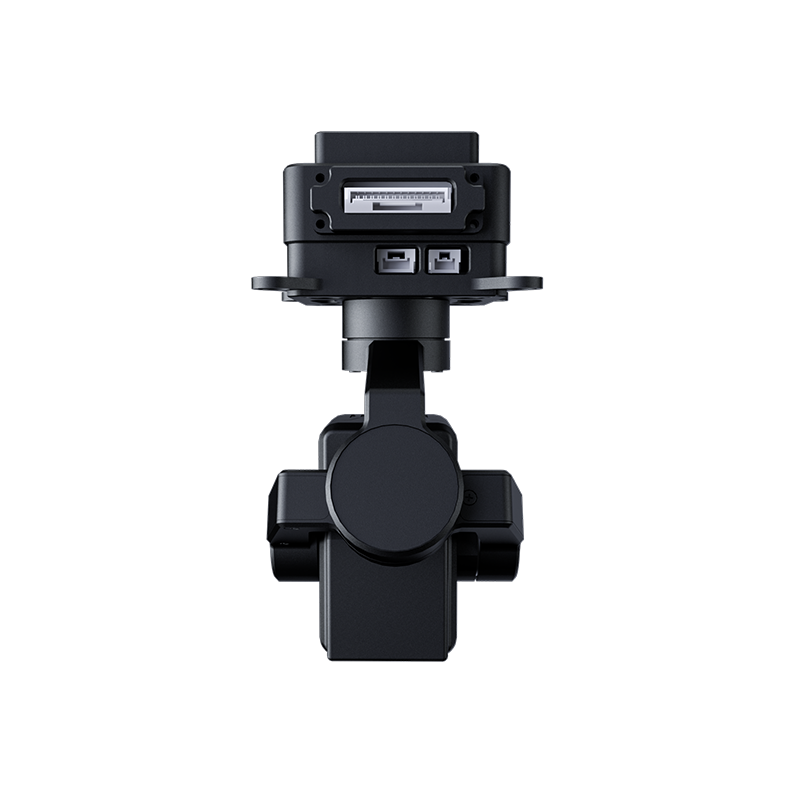

  • a dual-sensor gimbal camera on a white background right side view

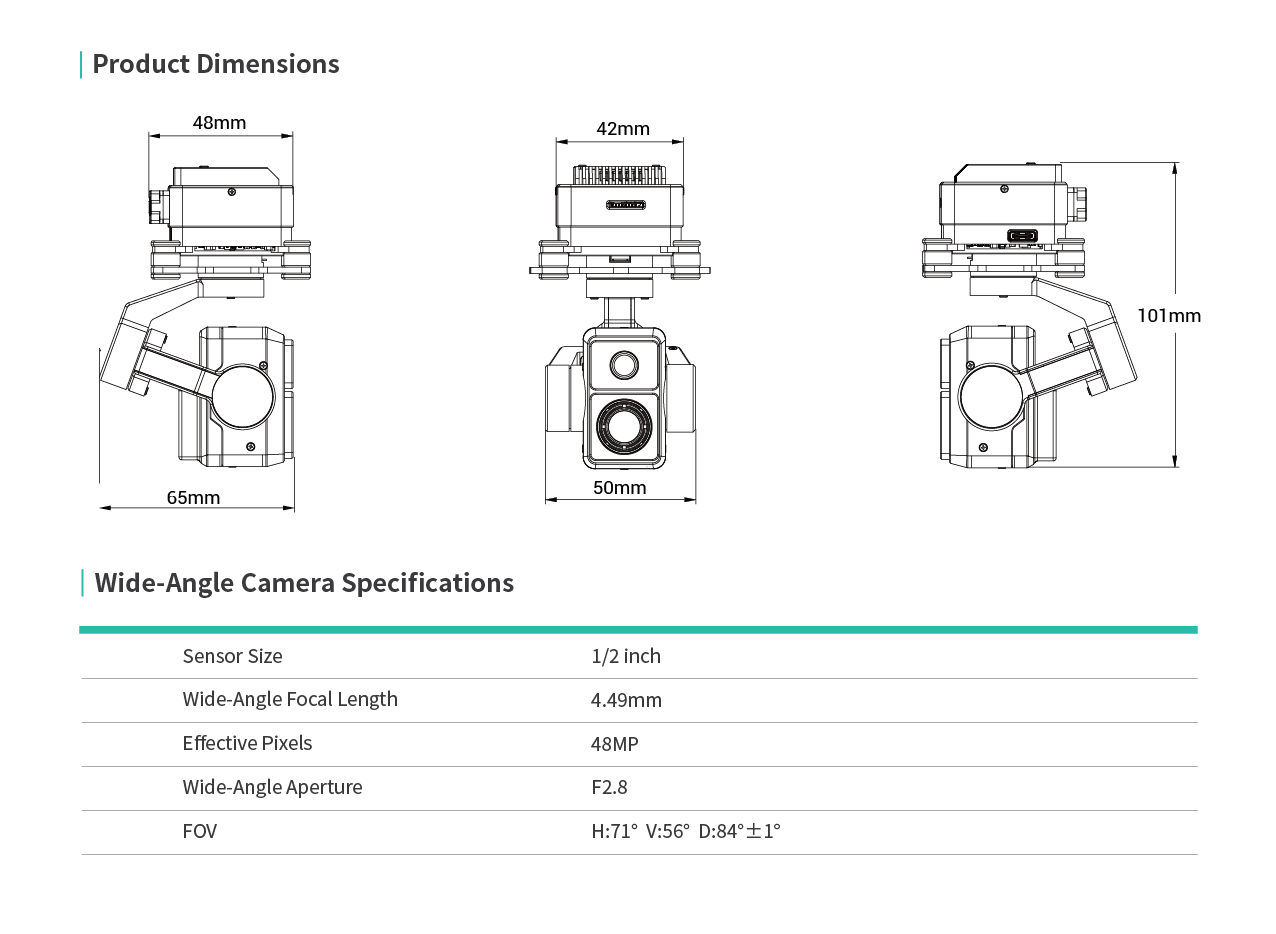

  • Technical specifications and dimensions of k8t-v3 dual-sensor gimbal camera on a white background

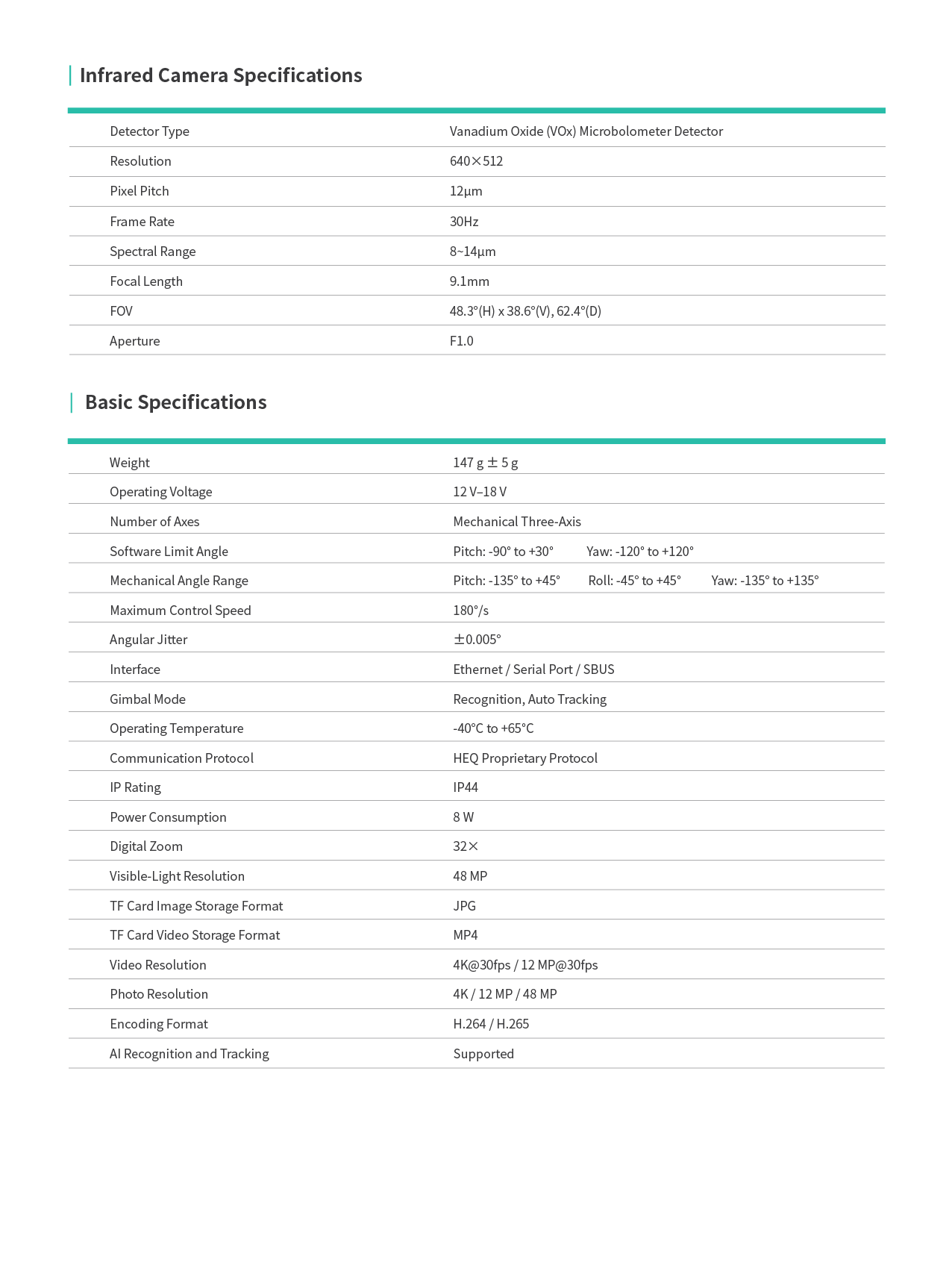

  • Infrared camera and basic gimbal specifications table of k8t-v3 on a white background
1 6

HEQ UAV TECH

K8T-V3 Dual-Sensor Gimbal Camera

K8T-V3 Dual-Sensor Gimbal Camera

$1,599.00 USD
$1,599.00 USD
Sale Sold out
Shipping calculated at checkout.

⚠️ Please confirm with customer service that your address is deliverable before ordering. If cancellation occurs due to an undeliverable address without prior confirmation, the PayPal fee will be borne by the customer (not charged by our company).

K8T-V3 Dual-Sensor Gimbal Camera

K8T-V3 is a highly integrated three-axis gimbal camera combining a visible-light camera and a high-resolution thermal imaging sensor. The complete unit weighs only 147g, delivering both lightweight design and high performance. Equipped with a 48 MP visible-light lens, it provides rich image details and true-to-life color reproduction. Combined with 640 × 512 thermal imaging resolution, a 9.1 mm focal length, and a 30 fps frame rate, it can quickly detect abnormal heat sources and perform non-contact temperature measurement, enabling coordinated dual-spectrum operation around the clock.

The gimbal features built-in AI intelligent recognition and tracking algorithms, allowing it to automatically lock onto dynamic targets such as vehicles and personnel for stable following and real-time capture. This significantly improves operational efficiency and response speed. It is suitable for security inspection, emergency rescue, industrial inspection, environmental monitoring, and other applications, providing an efficient and reliable visual solution for various aerial observation missions.

You can go to our HEQUAVTECH official website to download the Assistant software and Manuals.


3-Axis Gimbal System

  • Gimbal Type: Mechanical 3-Axis Stabilization
  • Weight: 147g ± 5g
  • Operating Voltage: 12V–18V

Software Limit Angle

  • Pitch: -90° to +30°
  • Yaw: -120° to +120°

Mechanical Range

  • Pitch: -135° to +45°
  • Roll: -45° to +45°
  • Yaw: -135° to +135°
  • Maximum Control Speed: 180°/s
  • Angular Jitter: ±0.005°
  • Interface: Ethernet / Serial Port / SBUS
  • Gimbal Modes: Recognition, Auto-Tracking
  • Operating Temperature: -40°C to +65°C
  • Communication Protocol: HEQ Proprietary Protocol
  • Protection Rating: IP44
  • Power Consumption: 8W

Thermal Imaging Camera

  • Detector Type: Vanadium Oxide (VOx) Uncooled Microbolometer Detector
  • Resolution: 640 × 512
  • Pixel Pitch: 12μm
  • Frame Rate: 30Hz
  • Spectral Range: 8–14μm
  • Focal Length: 9.1mm
  • Aperture: F1.0

Field of View

  • Horizontal: 48.3°
  • Vertical: 38.6°
  • Diagonal: 62.4°

Wide-Angle Camera

  • Sensor Size: 1/2"
  • Effective Pixels: 48MP
  • Focal Length: 4.49mm
  • Aperture: F2.8

Field of View

  • Horizontal: 71°
  • Vertical: 56°
  • Diagonal: 84° ± 1°

Video & Imaging

  • Visible-Light Resolution: 48MP
  • Digital Zoom: 32×
  • Video Resolution:
    • 4K @ 30fps
    • 12MP @ 30fps
  • Photo Resolution:
    • 4K
    • 12MP
    • 48MP
  • Photo Format: JPG
  • Video Format: MP4
  • Encoding Format: H.264 / H.265
  • AI Recognition & Tracking: Supported

Packing List: K8T-V3 Dual-Sensor Gimbal Camera *1

For more details, please contact our customer service.
