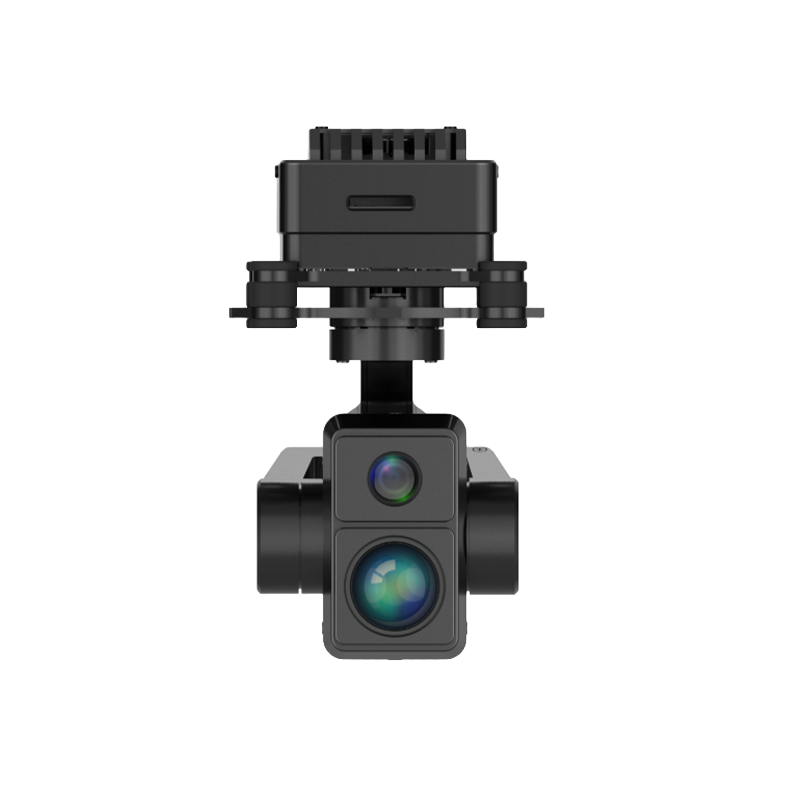

• Black k8t-v2 dual-sensor gimbal camera on a white background

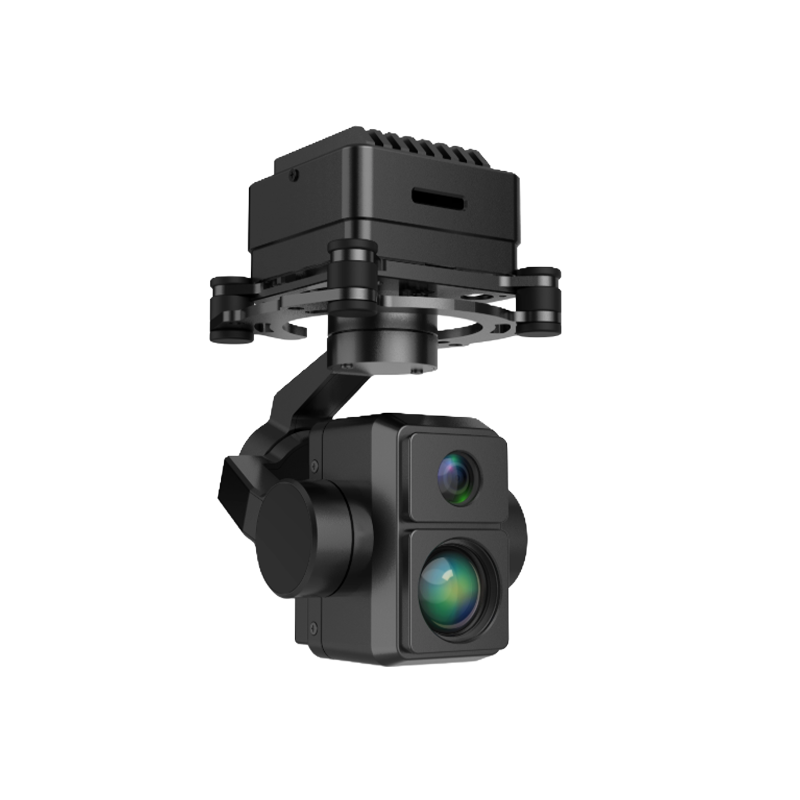

  • Side angled view of the K8T-V2 dual-sensor gimbal camera on a white background

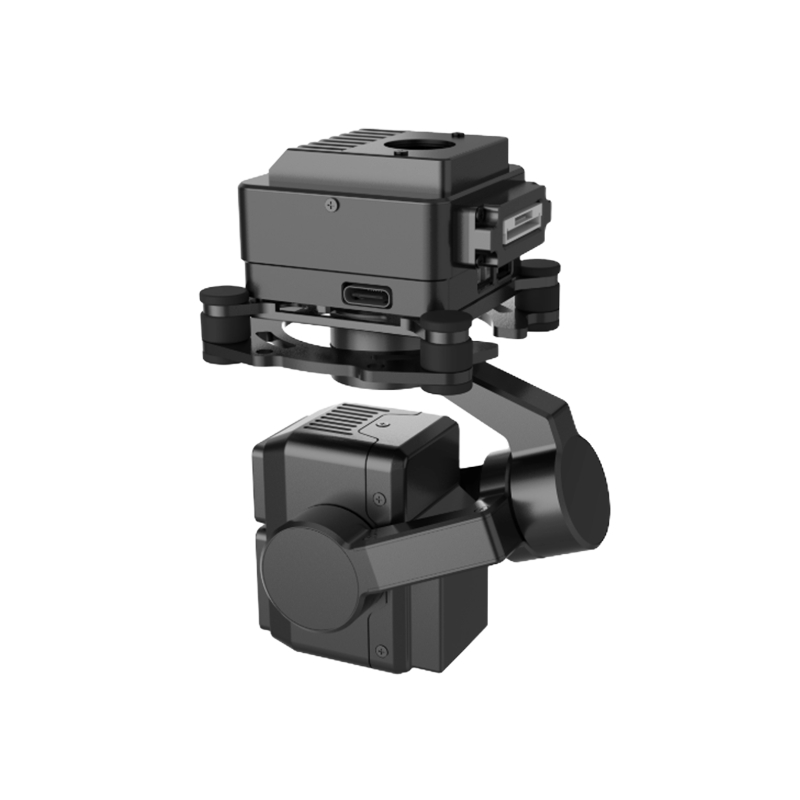

  • Rear angled view of the K8T-V2 dual-sensor gimbal camera on a white background

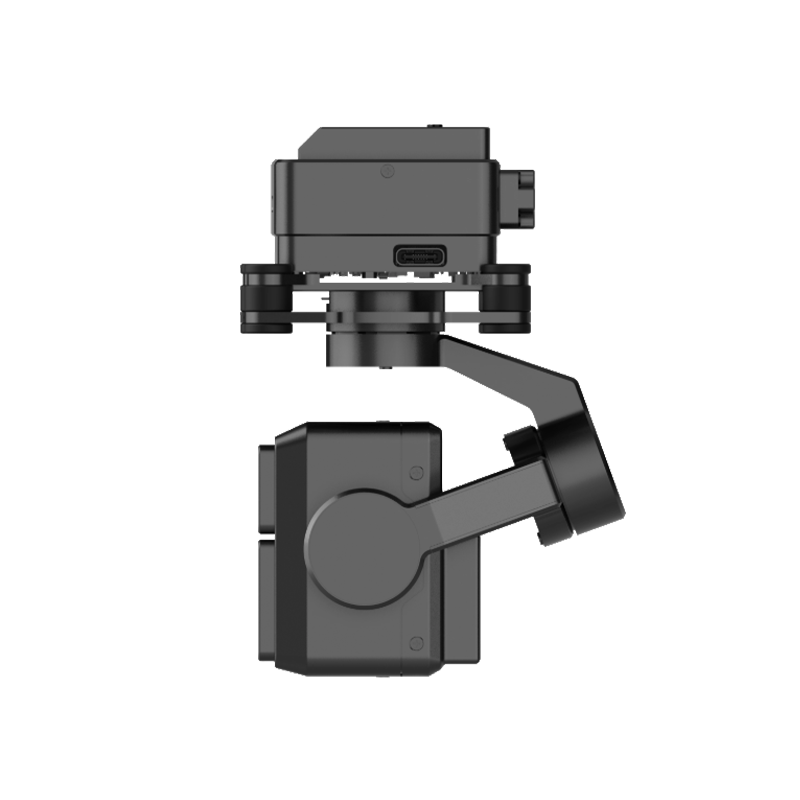

  • side view of k8t-v2 dual-sensor gimbal camera on a white background

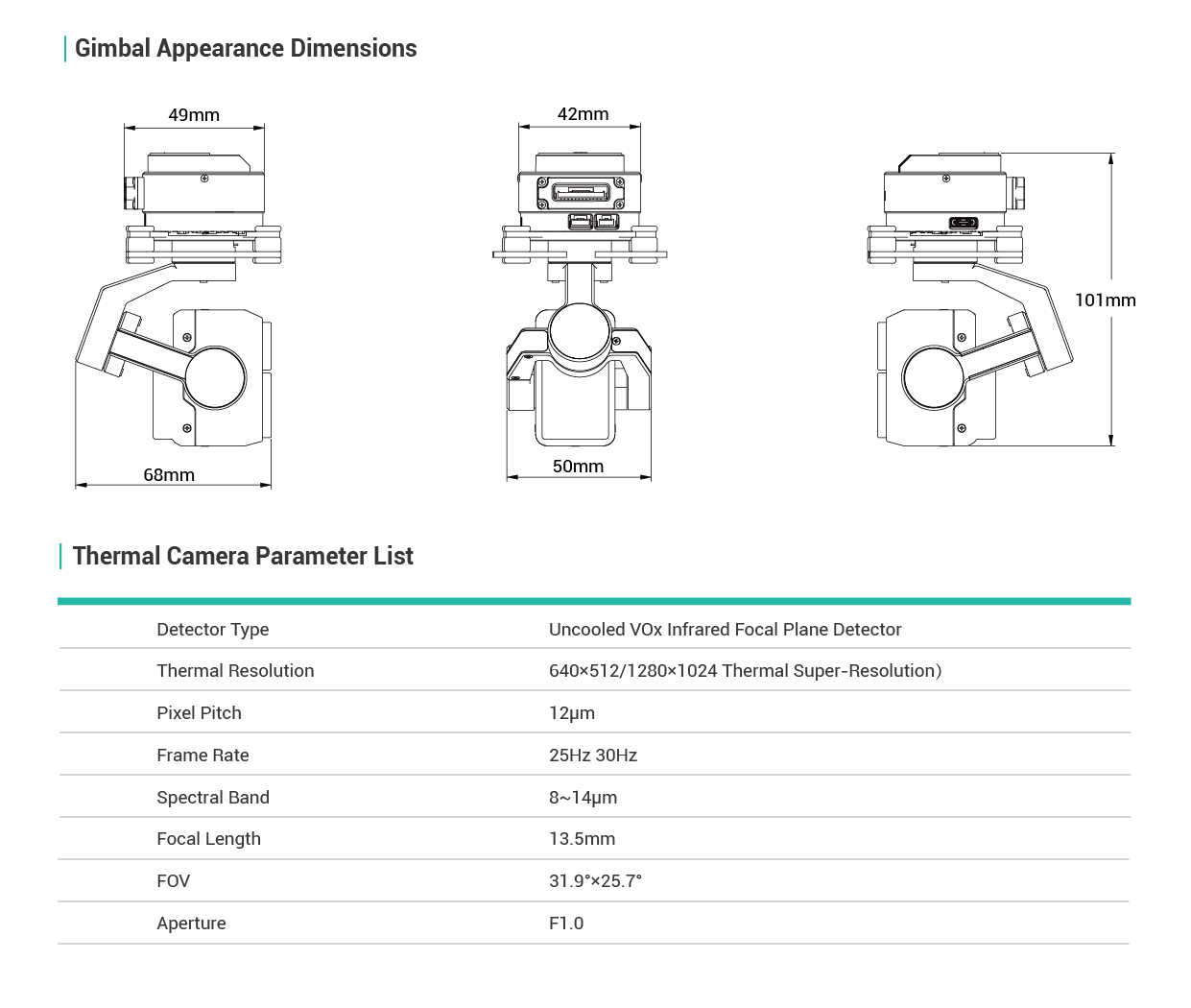

  • Technical specifications of a k8t-v2 thermal camera with dimensions and parameter list.

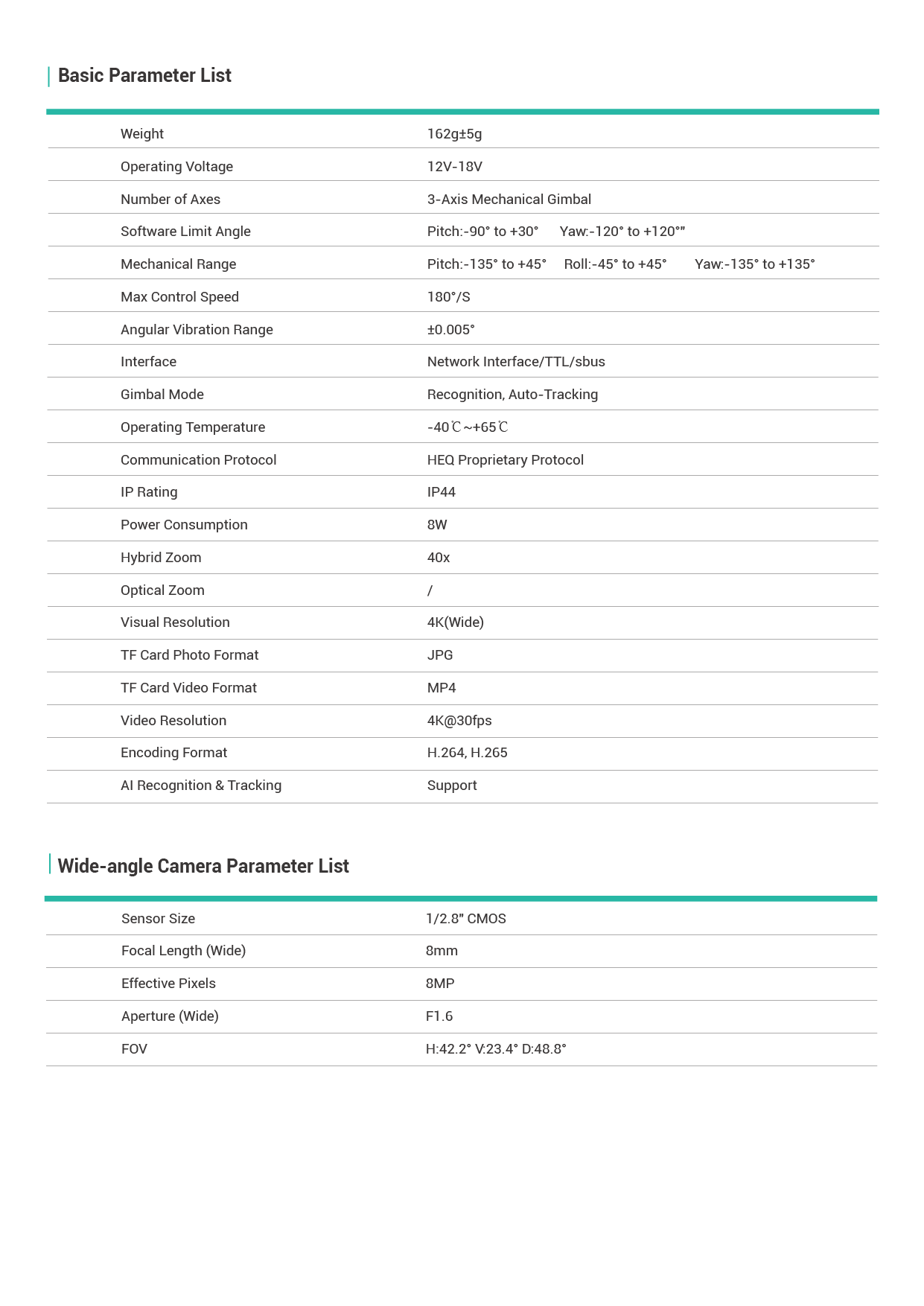

  • Technical specifications of a k8t-v2 dual-sensor gimbal camera on a white background
1 6

HEQ UAV TECH

K8T-V2 Dual-Sensor Gimbal Camera

K8T-V2 Dual-Sensor Gimbal Camera

$1,549.00 USD
$1,549.00 USD
Sale Sold out
Shipping calculated at checkout.

⚠️ Please confirm with customer service that your address is deliverable before ordering. If cancellation occurs due to an undeliverable address without prior confirmation, the PayPal fee will be borne by the customer (not charged by our company).

K8T-V2 Dual-Sensor Gimbal Camera

The K8T-V2 dual-sensor gimbal camera integrates superior performance and advanced stabilization into ne compact system. It combines thermal imaging with an 8-megapixel wide-angle lens, featuring intraredsuper-resolution enhancement for detailed detection and visible-light 4K ultra -HD video around the clockpports multiple protocol interfaces for seamless integration into security, inspection, rescue, and other intelligent platforms.Equipped with a three-axis stabilized gimbal, it ensures smooth observation and tracking even during highspeed motion. Built-in Al computing power of 4 TOPS enables automatic recognition of targets such as people and vehicles. Weighing only 162 grams, it offers versatile adaptability across various scenarios and sWhether applied in border security, power line inspection, emergency response, or industrial monitoring -the K8T-V2 serves as your trusted all-weather "eyes",

You can go to our HEQUAVTECH official website to download the Assistant software and Manuals.


3-Axis Gimbal System

  • Gimbal Type: 3-Axis Mechanical Stabilized Gimbal
  • Weight: 162g ± 5g
  • Operating Voltage: 12V–18V
  • Software Limit Angle:
    • Pitch: -90° to +30°
    • Yaw: -120° to +120°
  • Mechanical Range:
    • Pitch: -135° to +45°
    • Roll: -45° to +45°
    • Yaw: -135° to +135°
  • Maximum Control Speed: 180°/s
  • Angular Vibration Accuracy: ±0.005°
  • Interface: Network Interface / TTL / SBUS
  • Gimbal Modes: Target Recognition, Auto-Tracking
  • Operating Temperature: -40°C to +65°C
  • Communication Protocol: HEQ Proprietary Protocol
  • Protection Rating: IP44
  • Power Consumption: 8W

Thermal Imaging Camera

  • Detector Type: Uncooled VOx Infrared Focal Plane Detector
  • Thermal Resolution: 640 × 512 / 1280 × 1024 (Thermal Super Resolution)
  • Pixel Pitch: 12μm
  • Frame Rate: 25Hz / 30Hz
  • Spectral Response Band: 8–14μm
  • Focal Length: 13.5mm
  • Field of View (FOV): 31.9° × 25.7°
  • Aperture: F1.0

Wide-Angle Camera

  • Sensor Size: 1/2.8" CMOS
  • Effective Pixels: 8MP
  • Focal Length: 8mm
  • Aperture: F1.6
  • Field of View:
    • Horizontal (HFOV): 42.2°
    • Vertical (VFOV): 23.4°
    • Diagonal (DFOV): 48.8°

Video & Imaging

  • Visual Resolution: 4K (Wide-Angle)
  • Video Resolution: 4K @ 30fps
  • Photo Format: JPG
  • Video Format: MP4
  • Encoding Format: H.264 / H.265
  • AI Recognition & Tracking: Supported

Packing List: K8T-V2 Dual Sensor Gimbal Camera*1

For more details, please contact our customer service directly.

TIPS: Our delivery fee includes taxes and fees,  the timeliness may be slower during the customs clearance process, please understand.

Shipping from China: Shipping 15-20days.（If you want to receive faster, you can contact customer service to negotiate the shipping method）
