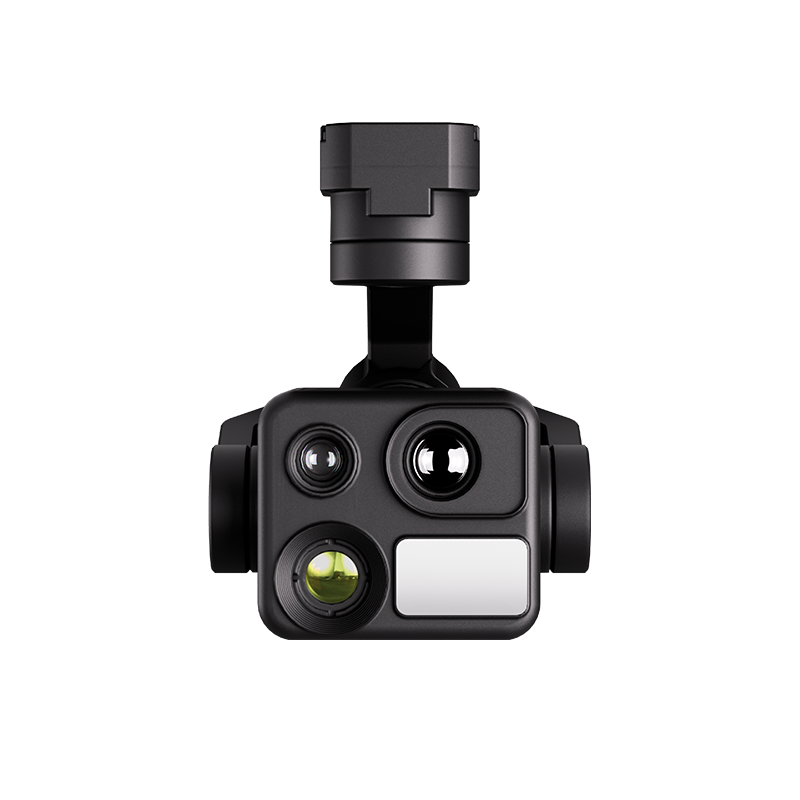

• Front angled view of the K40T quad-sensor AI gimbal camera on a white background

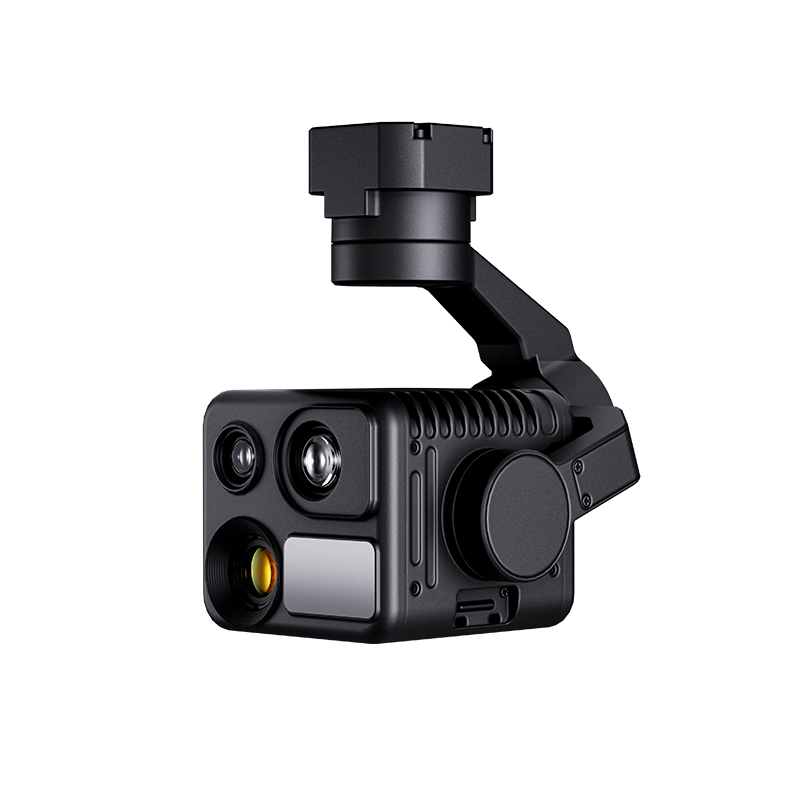

  • Side angled view of the K40T quad-sensor AI gimbal camera on a white background

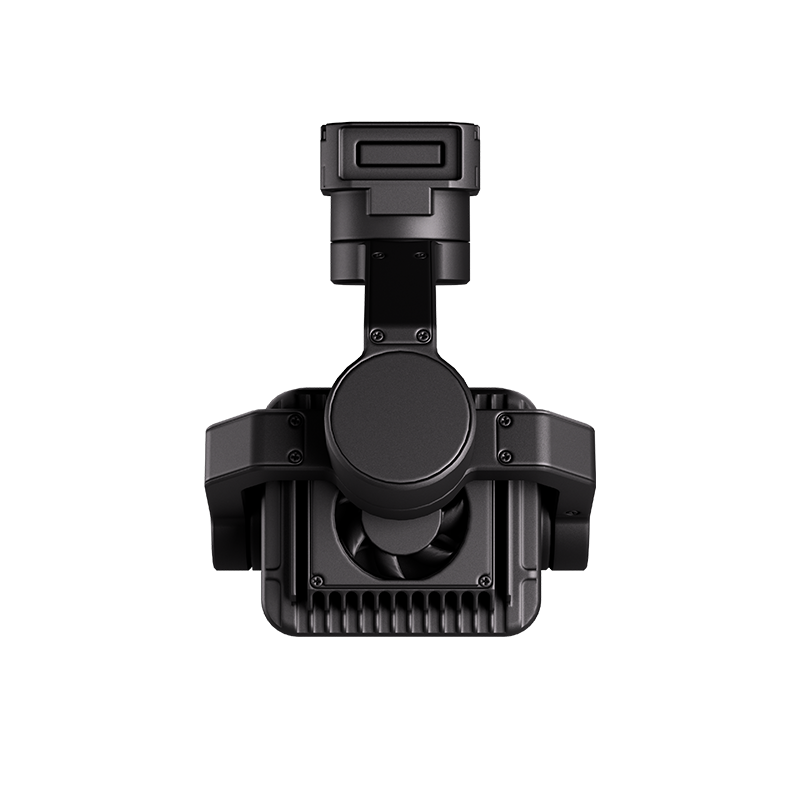

  • Back view of K40T quad-sensor AI gimbal camera on a white background

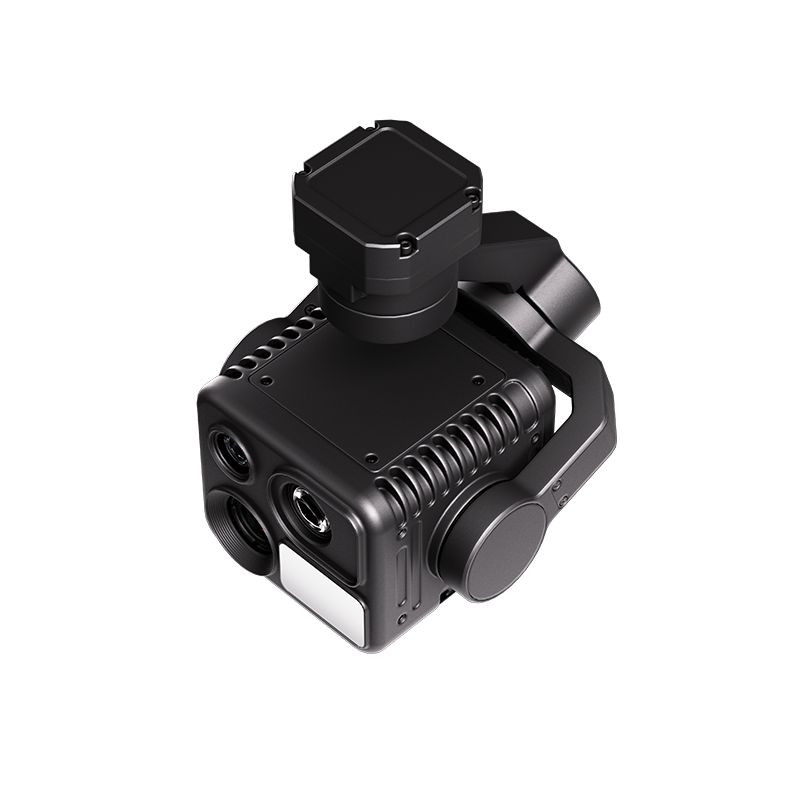

  • Alternate view of the K40T quad-sensor AI gimbal camera on a white background

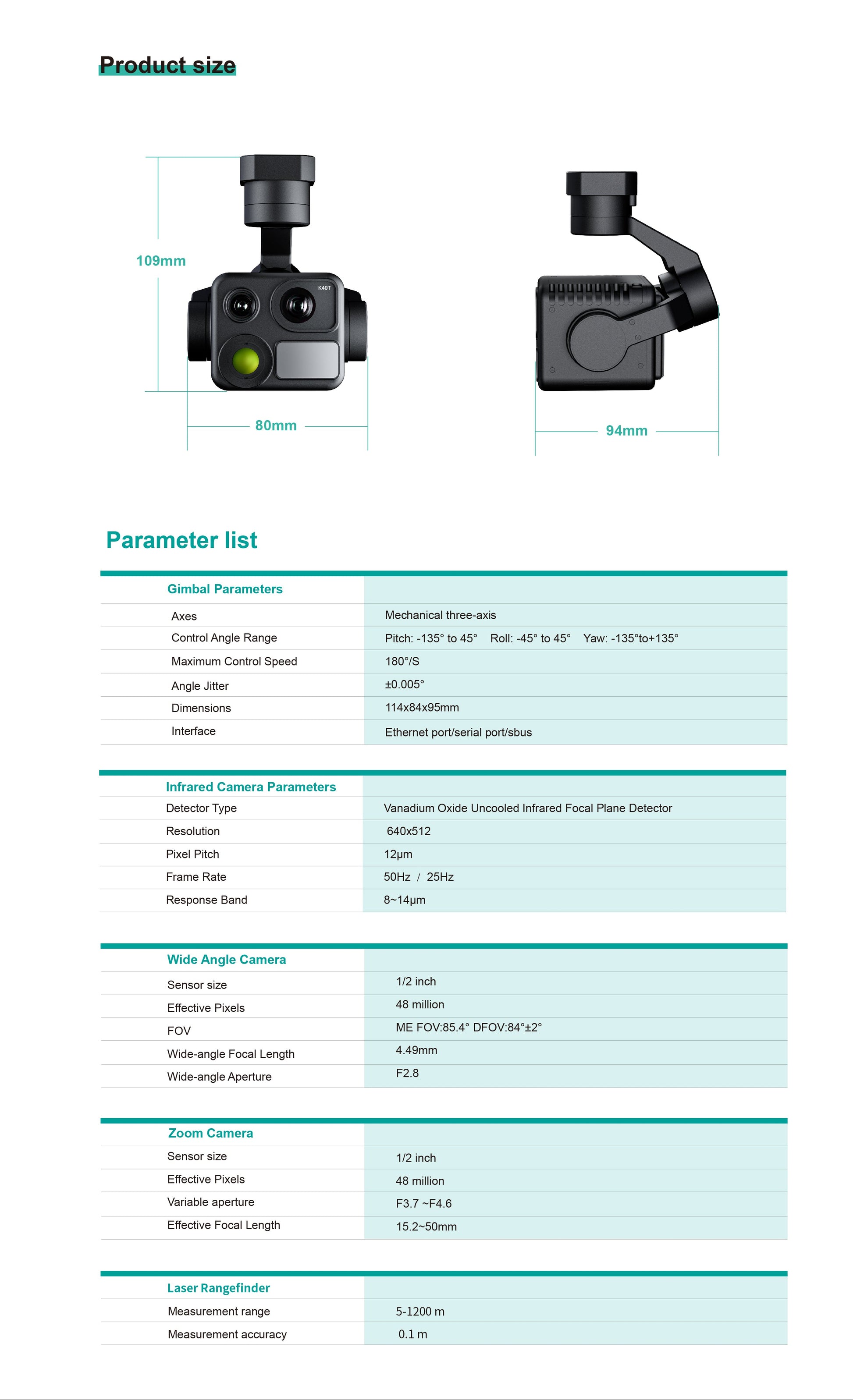

  • Technical specifications of a K40T quad-Sensor Gimbal Camera on a white background
1 5

HEQ UAV TECH

K40T Quad-Sensor AI Gimbal Camera

K40T Quad-Sensor AI Gimbal Camera

$3,599.00 USD
$3,599.00 USD
Sale Sold out
Shipping calculated at checkout.

⚠️ Please confirm with customer service that your address is deliverable before ordering. If cancellation occurs due to an undeliverable address without prior confirmation, the PayPal fee will be borne by the customer (not charged by our company).

K40T Quad-Sensor AI Gimbal Camera

The K40T gimbal camera is a drone payload that integrates multiple sensors and high performance, designed to meet the needs of drone inspections.The gimbal camera integrates multiple sensors such as wide-angle, telephoto, infrared and laser ranging. Whether it is trackingmoving targets or identifying heat sources, the K40T can complete thetask with ultra-high accuracy, it performs particularly well when following targets and collecting data at high altitudes, providing strong support forpublic security, fire protection, electricity, water conservancy, forestry,maritime and other fields.


You can go to our HEQUAVTECH official website to download the Assistant software and Manuals.



Gimbal Parameters

  • Gimbal Type: Mechanical 3-Axis Stabilization
  • Control Angle Range:
    • Pitch: -135° to +45°
    • Roll: -45° to +45°
    • Yaw: -135° to +135°
  • Maximum Control Speed: 180°/s
  • Angle Jitter: ±0.005°
  • Dimensions: 114 × 84 × 95 mm
  • Interface: Ethernet Port / Serial Port / SBUS

Infrared Camera Parameters

  • Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane Detector
  • Resolution: 640 × 512
  • Pixel Pitch: 12 μm
  • Frame Rate: 50Hz / 25Hz
  • Spectral Response Band: 8–14 μm

Wide-Angle Camera

  • Sensor Size: 1/2"
  • Effective Pixels: 48MP
  • Field of View:
    • Horizontal (HFOV): 85.4°
    • Diagonal (DFOV): 84° ± 2°
  • Focal Length: 4.49mm
  • Aperture: F2.8

Zoom Camera

  • Sensor Size: 1/2"
  • Effective Pixels: 48MP
  • Variable Aperture: F3.7 – F4.6
  • Effective Focal Length: 15.2 – 50mm

Laser Rangefinder

  • Measurement Range: 5–1200m
  • Measurement Accuracy: 0.1m


Packing List: K40T Quad-Sensor Gimbal Camera *1
