K40T Mini Quad-Sensor Gimbal Camera

K40T Mini Quad-Sensor Gimbal Camera

$2,399.00 USD
$2,399.00 USD
Sale Sold out
Shipping calculated at checkout.

⚠️ Please confirm with customer service that your address is deliverable before ordering. If cancellation occurs due to an undeliverable address without prior confirmation, the PayPal fee will be borne by the customer (not charged by our company).

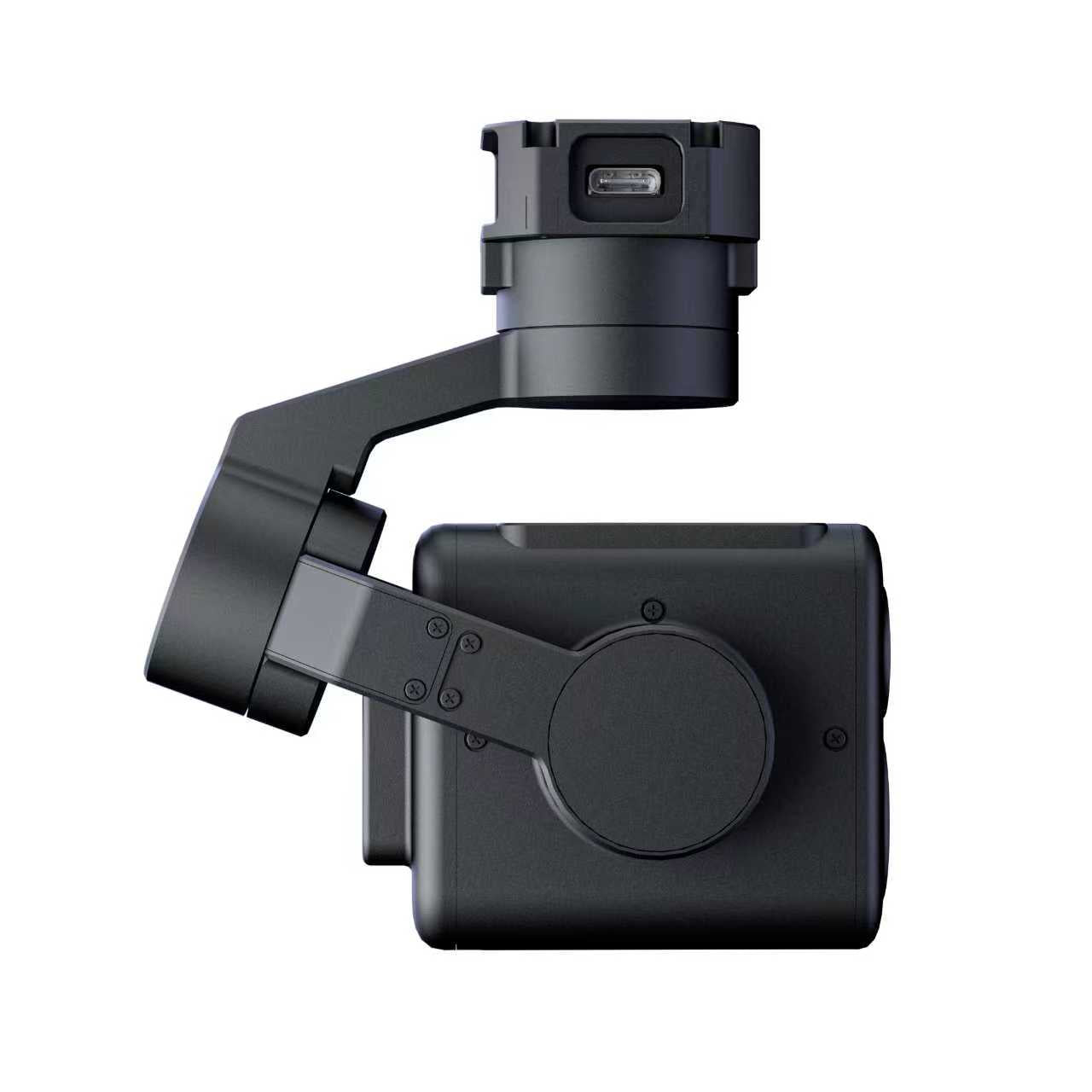

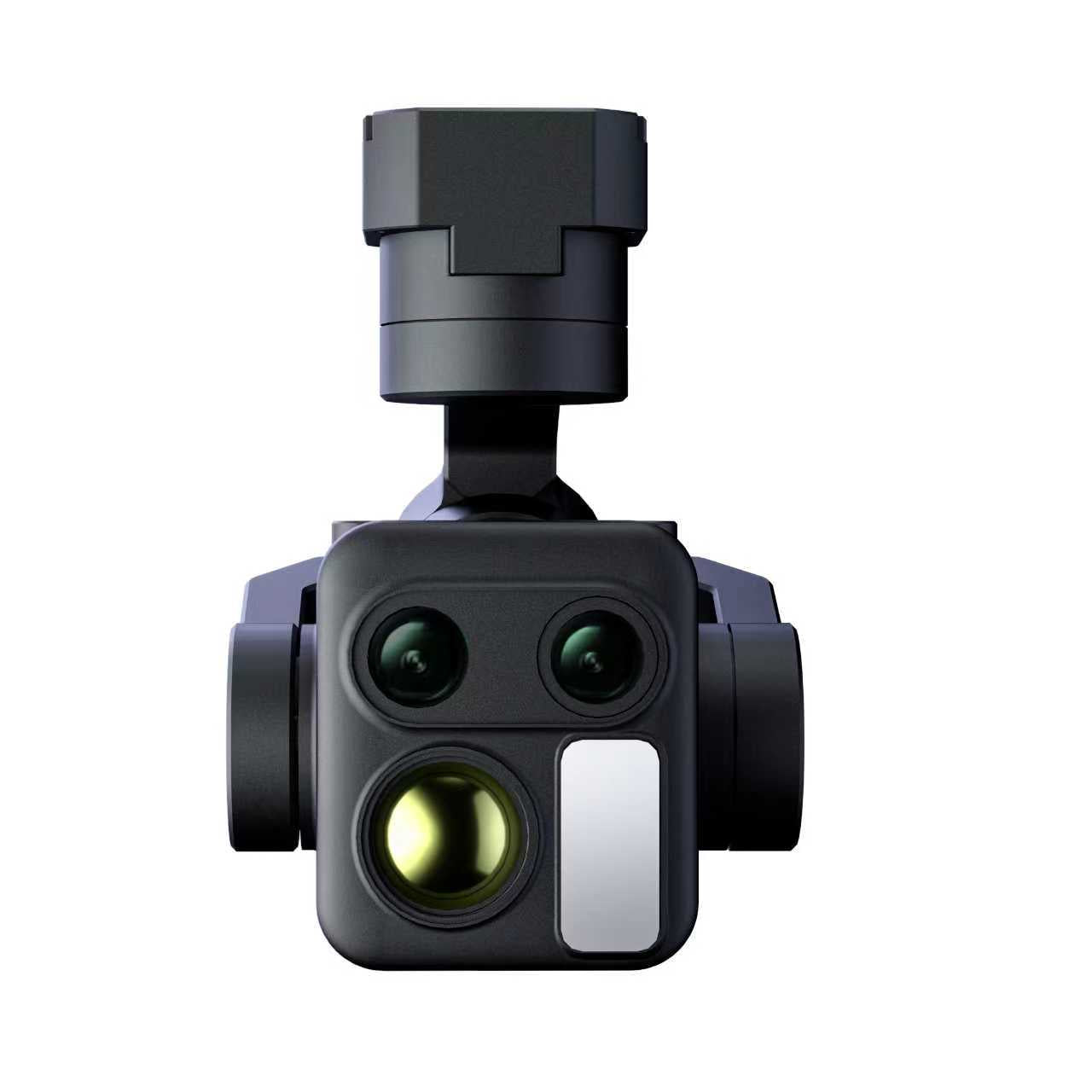

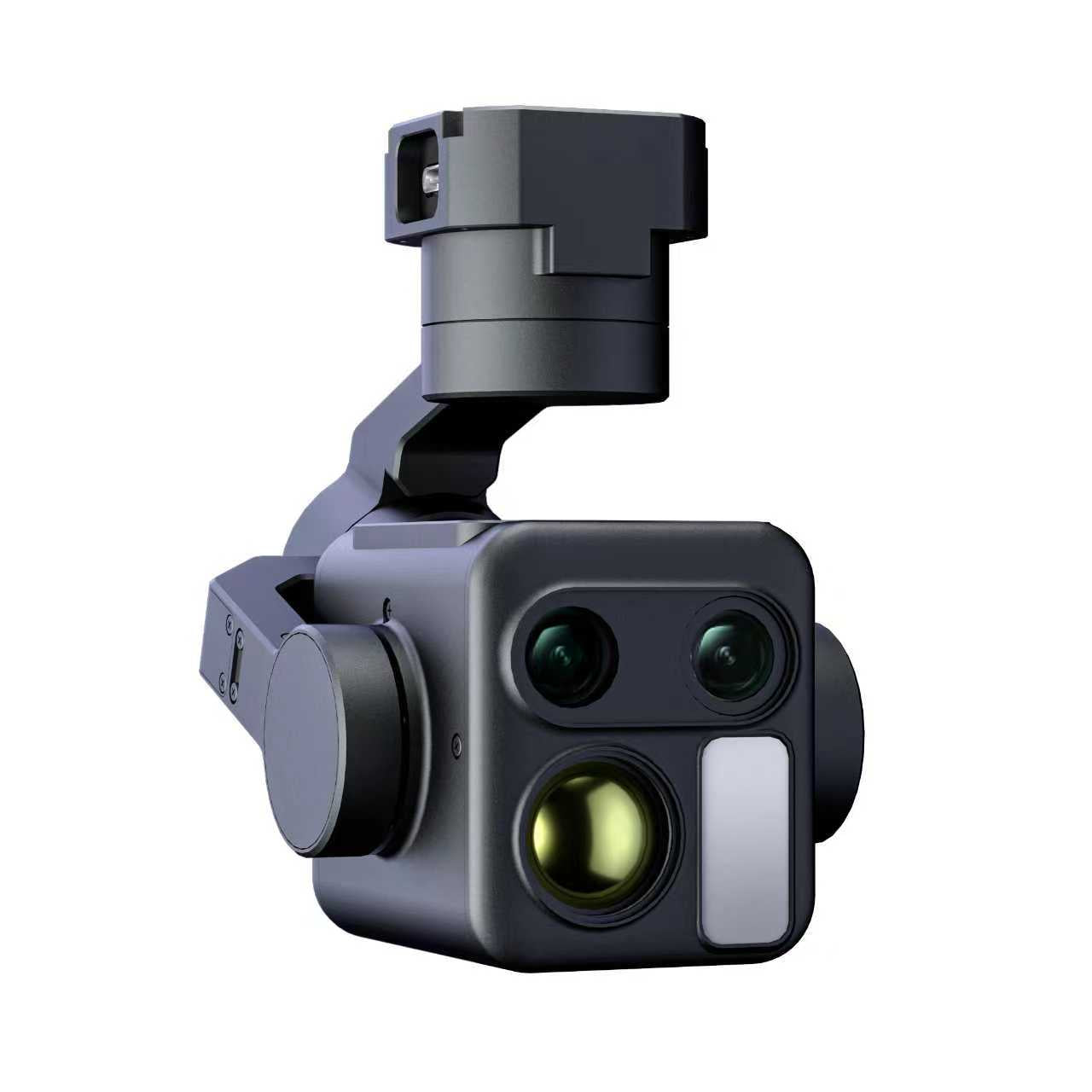

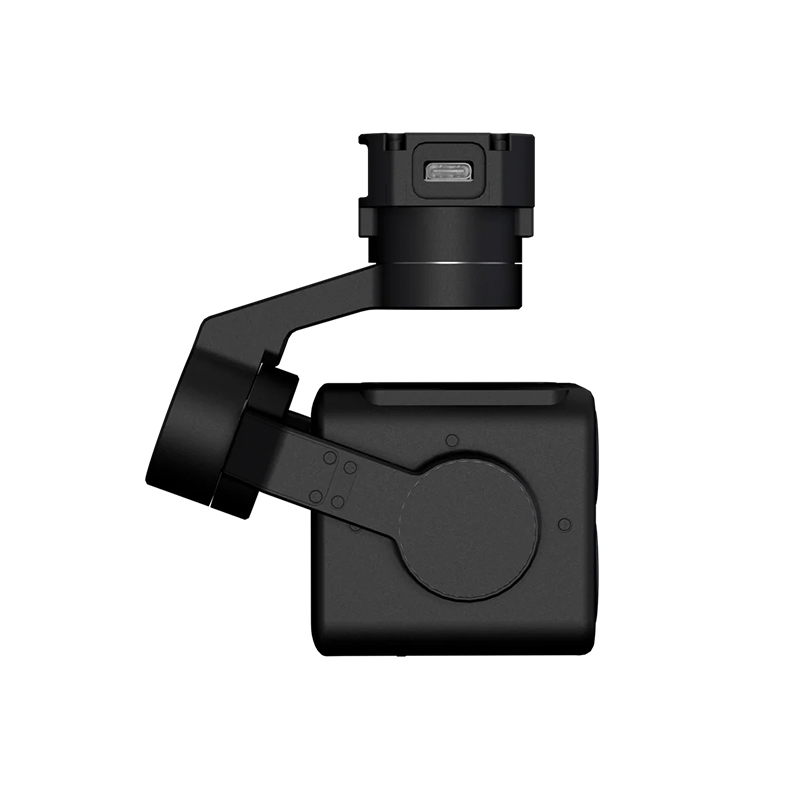

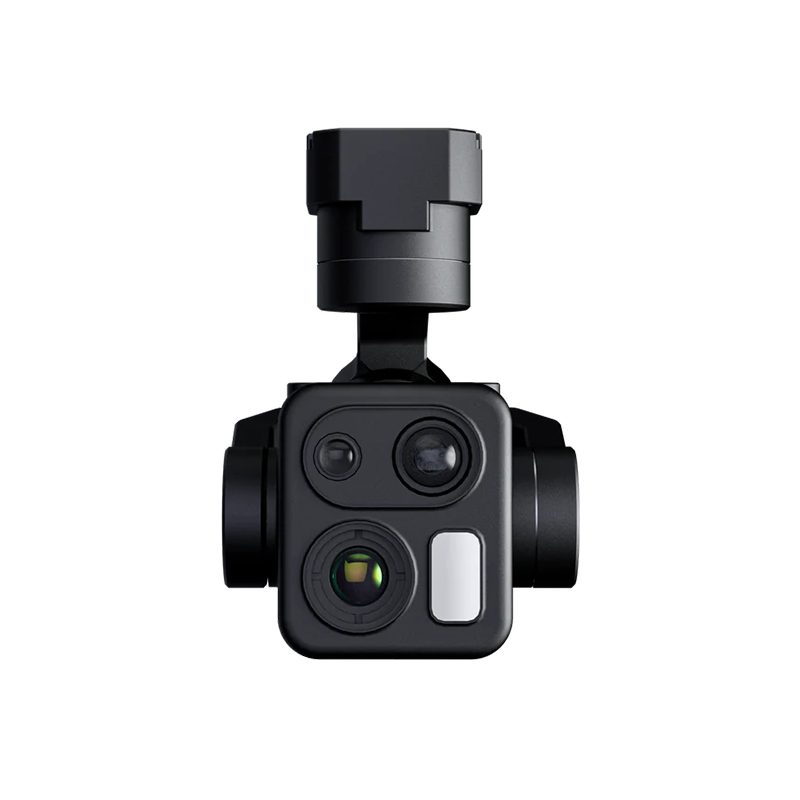

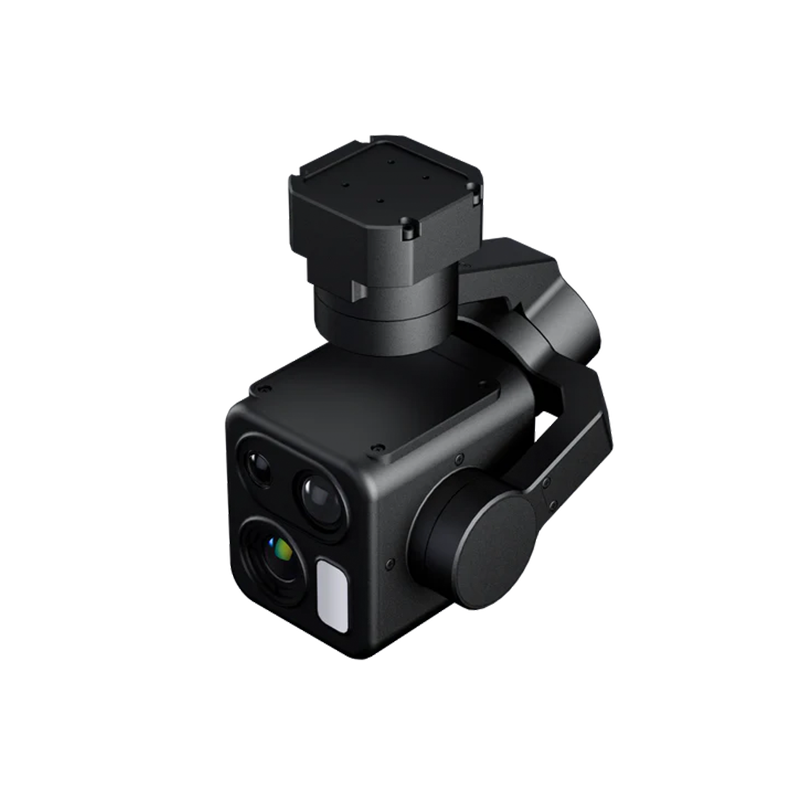

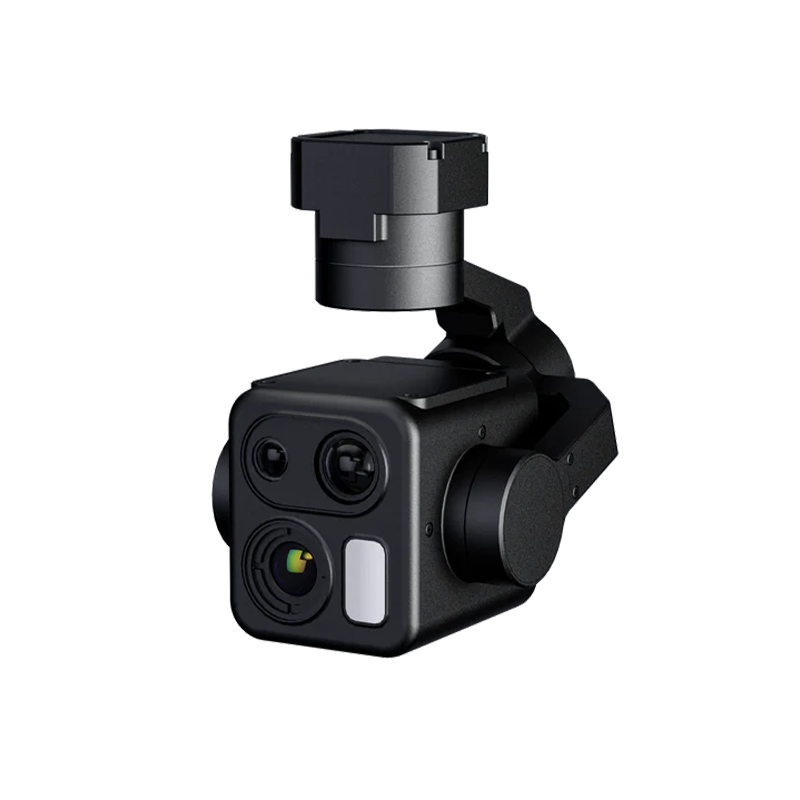

K40T-Mini-B Quad-Sensor Gimbal Camera

The K40T-Mini-B Quad-sensor gimbal camera is a lightweight composite sensor drone
payload that integrates visible light/infrared/laser ranging, and is equipped with a
3-axis stabilized gimbal. It supports stable observation and tracking under
high-speed motion, and can achieve rapid target positioning with a 1200m laser
ranging. The built-in 4T computing power AI chip can realize automatic recognition of
targets such as personnel and vehicles. The whole machine weighs less than 250g
and is suitable for scenes such as power inspection and emergency rescue, realizing
a full-process closed loop from wide-area reconnaissance to precise positioning.


You can go to our HEQUAVTECH official website to download the Assistant software and Manuals.

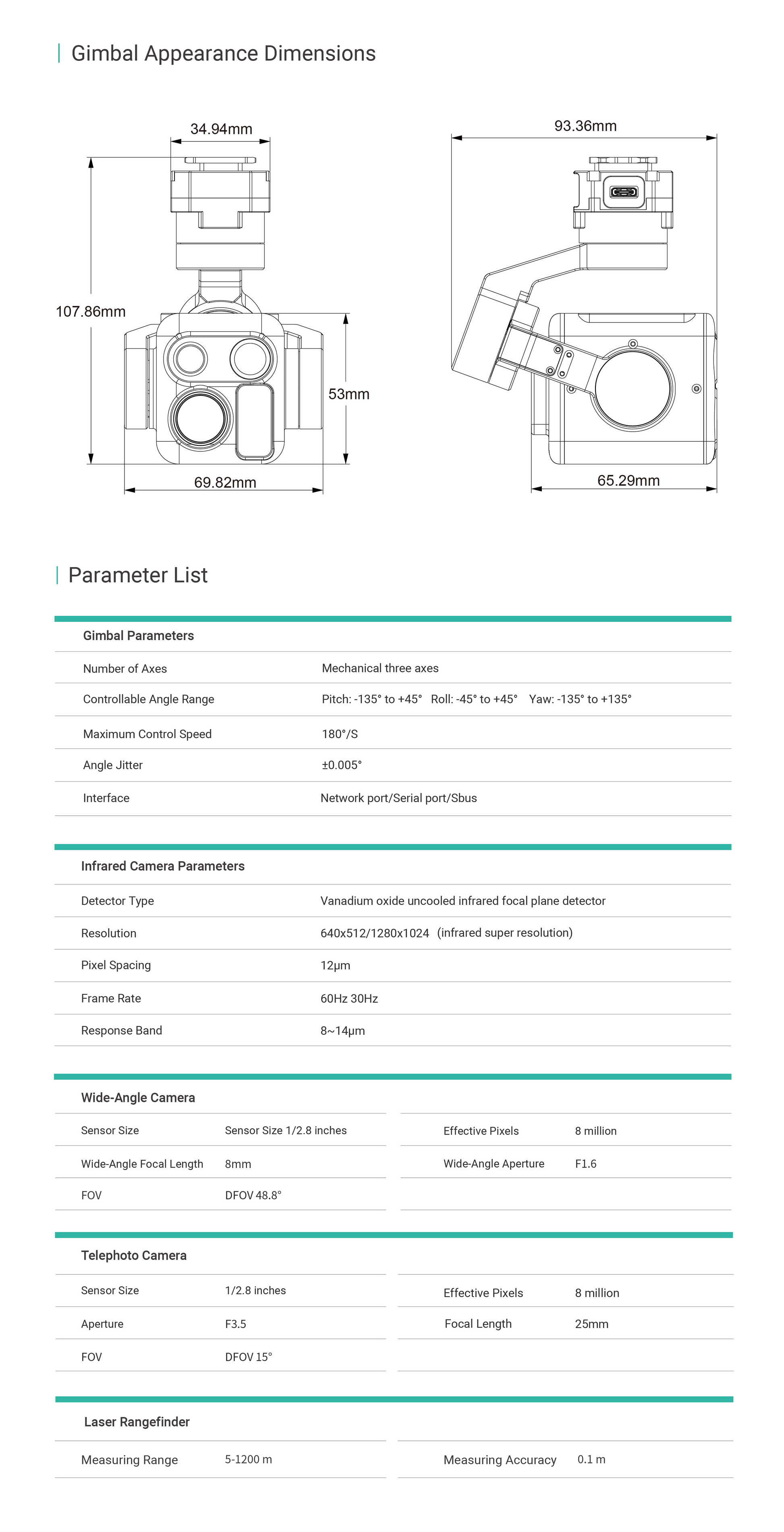

3-Axis Gimbal System

  • Gimbal Type: Mechanical 3-Axis Stabilization
  • Control Angle Range:
    • Pitch: -135° to +45°
    • Roll: -45° to +45°
    • Yaw: -135° to +135°
  • Maximum Control Speed: 180°/s
  • Angle Jitter: ±0.005°
  • Interface: Network Port / Serial Port / SBUS

Thermal Imaging Camera

  • Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane Detector
  • Resolution: 640 × 512 / 1280 × 1024 (Infrared Super Resolution)
  • Pixel Pitch: 12μm
  • Frame Rate: 60Hz / 30Hz
  • Spectral Response Band: 8–14μm

Wide-Angle Camera

  • Sensor Size: 1/2.8"
  • Effective Pixels: 8MP
  • Focal Length: 8mm
  • Aperture: F1.6
  • Field of View (DFOV): 48.8°

Telephoto Camera

  • Sensor Size: 1/2.8"
  • Effective Pixels: 8MP
  • Aperture: F3.5
  • Focal Length: 25mm
  • Field of View (DFOV): 15°

Laser Rangefinder

  • Measurement Range: 5–1200m
  • Measurement Accuracy: 0.1m



Packing List: K40T Mini Quad-Sensor Gimbal Camera
